UV resistance
Resistant to most chemicals and solvents
Flame retardant
Excellent abrasion resistance
Edge overlap of 25% and more
| Property | Test Method | Test Value |
|---|---|---|
| Melting Temperature | ASTMD 276 | 240°C |
| Low-Temperature Flexibility | -50°C/4 hours | No cracking |
| Flammability | UL224 | VW-1 |
| Abrasion Test | ISO 6722 | 14200 cycles, no damage |

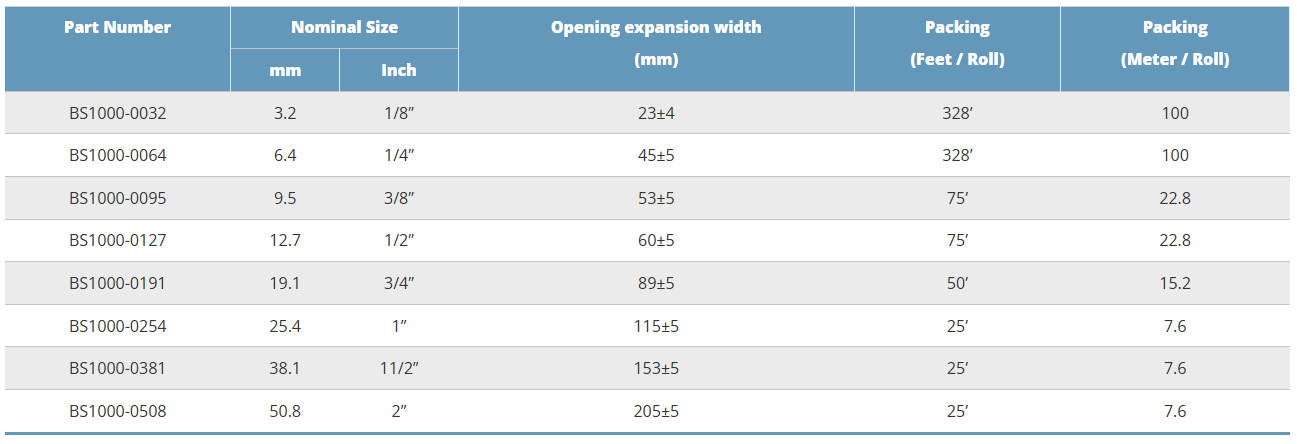

| Product Code | Size | Expanded Width (mm) | Packaging (ft/roll) | Packaging (m/roll) | |
|---|---|---|---|---|---|
| mm | Inch | ||||
| BS1000-0032 | 3.2 | 1/ 8” | 23±4 | 328’ | 100 |
| BS1000-0064 | 6.4 | 1/ 4” | 45±5 | 328’ | 100 |
| BS1000-0095 | 9.5 | 3/ 8” | 53±5 | 75’ | 22.8 |
| BS1000-0127 | 12.7 | 1/ 2” | 60±5 | 75’ | 22.8 |
| BS1000-0191 | 19.1 | 3/ 4” | 89±5 | 50’ | 15.2 |
| BS1000-0254 | 25.4 | 1” | 115±5 | 25’ | 7.6 |
| BS1000-0381 | 38.1 | 11/ 2” | 153±5 | 25’ | 7.6 |
| BS1000-0508 | 50.8 | 2” | 205±5 | 25’ | 7.6 |
