DNC - Dual Layer Cold Shrink Silicone Rubber Sleeve

Applications

DNC is made of highly weather-resistant Silicone rubber material. The product and construction quality are improved through the dual-layer design of the built-in rubber ring. It is widely used in various types of cable joint protection for coaxial cables, jumpers, DIN connectors, connectors, and N-type connectors in communication base stations. The simple and convenient operation method allows to quick construction without the use of tools in narrow spaces where fire sources are not allowed. The new adhesion ring structure of the inner layer can improve the hardening issues of traditional mastic, and make the protection ability of waterproof insulation and sealing more reliable and durable.

Approvals / Specifications

–

Operating Temperature Range

  • Continuous operating temperature: -40℃ ~ 90℃
  • Storage temperature: -40℃~50℃
  • Storage life recommended: 1 Year

COLOR

Standard color: black, yellow
Characteristics

Anti-Ultraviolet, resistant to acid and alkali

Excellent mechanical, electrical and waterproof property

None heating tools requires

Substantially reducing operating time

Long lifetime product

High ratio shrinkage

Compliance with RoHS

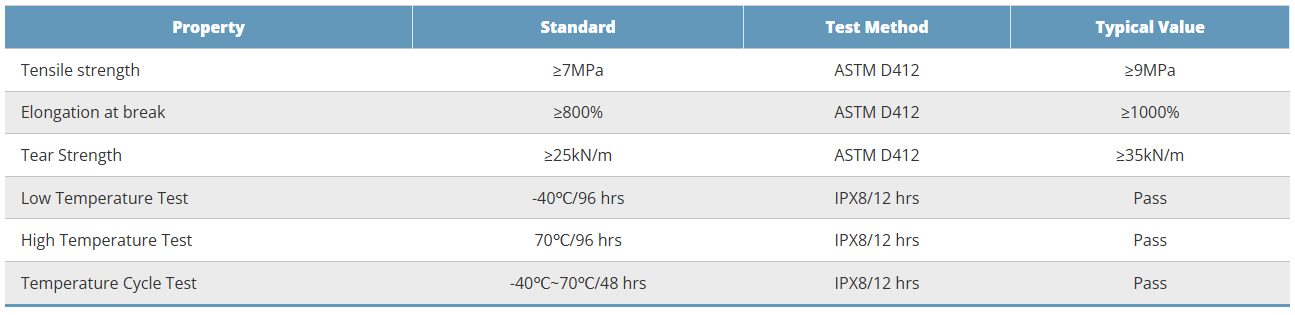

Property Specification Requirement Test Method Test Value
Tensile Strength ≥7MPa ASTM D412 ≥9MPa
Elongation at Break ≥800% ASTM D412 ≥1000%
Tear Percentage ≥25kN/m ASTM D412 ≥35kN/m
Low-Temperature Test -40℃/96 hours IPX8/12 hours Pass
Flammability Test 70℃/96 hours IPX8/12 hours Pass
Thermal Cycling Test -40℃~70℃/48 hours IPX8/12 hours Pass
Product Code Inside Diameter Before Shrinking (mm) Inside Diameter After Shrinking (mm) Length After Shrinking (mm) Applicable Diameter Range (mm)
DNC3009-115BK 30±1 8.5±2 115 10~26
DNC4010-140BK 40±1 9.5±2 140 12~36
