Anti-Ultraviolet, resistant to acid and alkali
Excellent mechanical and electrical property
None heating tools requires
Substantially reducing operating time
Long lifetime product
High ratio shrinkage
Compliance with RoHS

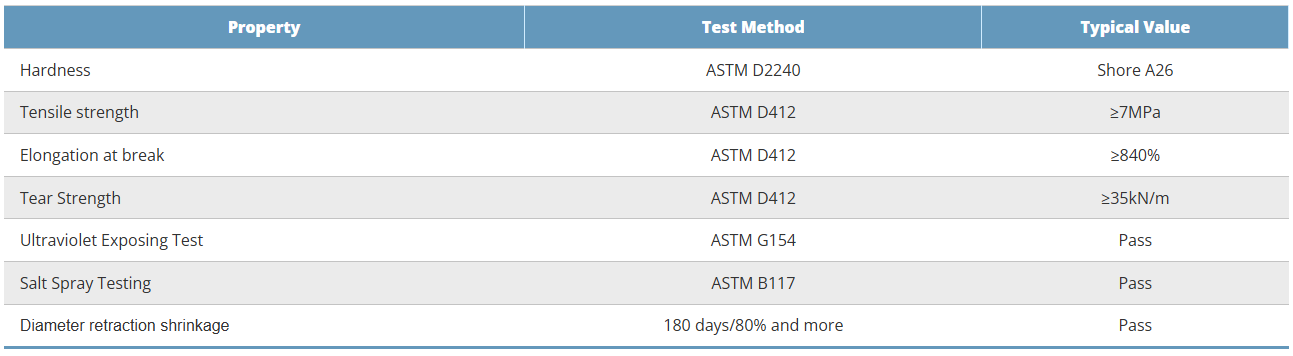

| Property | Test Method | Test Value |
|---|---|---|
| Hardness | ASTM D2240 | Shore A26 |
| Tensile Strength | ASTM D412 | ≥7MPa |
| Elongation at Break | ASTM D412 | ≥840% |
| Tear Percentage | ASTM D412 | ≥35kN/m |
| UV Resistance Test | ASTM G154 | Pass |
| Salt Spray Test | ASTM B117 | Pass |
| Recovery Percentage | 180 days / more than 80% | Pass |
| Without Silicone Rubber | ||||
|---|---|---|---|---|

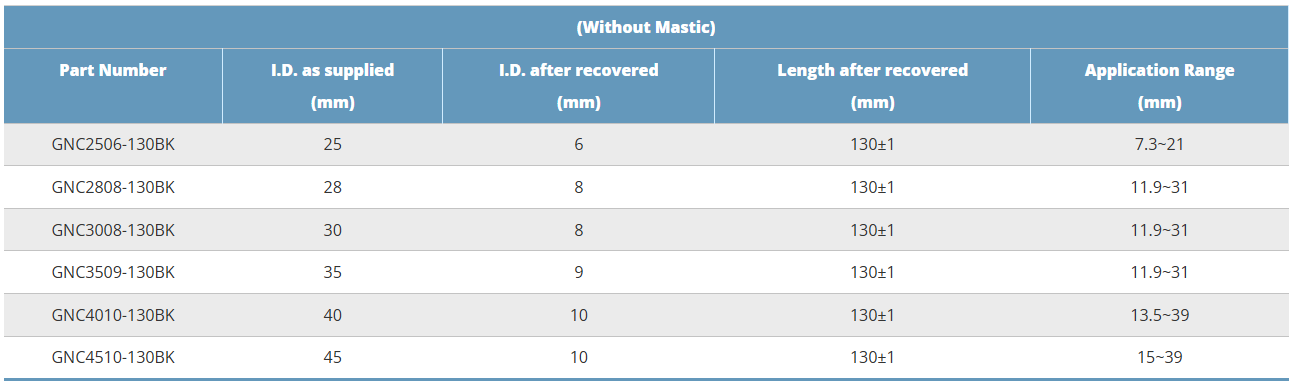

| Product Code | Inside Diameter Before Shrinking (mm) | Inside Diameter After Shrinking (mm) | Length After Shrinking (mm) | Applicable Diameter Range (mm) |
| GNC2506-130BK | 25 | 6 | 130 | 7.3~21 |
| GNC2808-130BK | 28 | 8 | 130 | 11.9~31 |
| GNC3008-130BK | 30 | 8 | 130 | 11.9~31 |
| GNC3509-130BK | 35 | 9 | 130 | 11.9~31 |
| GNC4010-130BK | 40 | 10 | 130 | 13.5~39 |
| GNC4510-130BK | 45 | 10 | 130 | 15~39 |
Other sizes and lengths can be customized by customer requirement (range of inner diameter as supplied is: 15~130mm, range of length is: 60~780mm)
