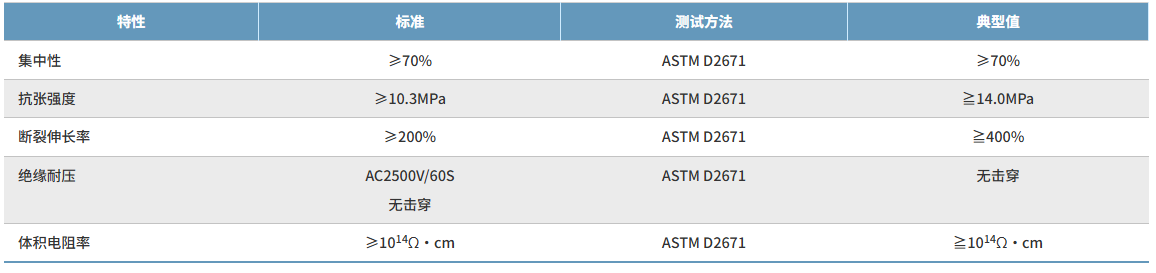

| 性能 | 规格要求 | 测试方法 | 测试值 |
|---|---|---|---|
| 同心度 | ≥70% | ASTM D2671 | ≥70% |
| 拉伸强度 | ≥10.3MPa | ASTM D2671 | ≥14.0MPa |
| 断裂伸长率 | ≥200% | ASTM D2671 | ≥400% |
| 耐电压 | AC2500V/60S无损坏 | ASTM D2671 | 无损坏 |
| 体积电阻率 | ≥10^14 Ω·cm | ASTM D2671 | ≥10^14 Ω·cm |
| 产品编号 | 尺寸（毫米） | 收缩前（毫米） | 收缩后（毫米） | 标准长度（米） | ||
|---|---|---|---|---|---|---|
| 内径 | 壁厚 | 内径（最大值） | 壁厚（最小值） | |||
| G1-0010 | 1.0 | 1.5±0.3 | 0.20±0.05 | 0.7 | 0.33 | 200 |
| G1-0015 | 1.5 | 2.0±0.3 | 0.20±0.05 | 0.8 | 0.34 | 200 |
| G1-0020 | 2.0 | 2.5±0.3 | 0.20±0.05 | 1.1 | 0.34 | 200 |
| G1-0025 | 2.5 | 3.0±0.3 | 0.25±0.05 | 1.25 | 0.42 | 200 |
| G1-0030 | 3.0 | 3.5±0.3 | 0.25±0.05 | 1.5 | 0.42 | 200 |
| G1-0035 | 3.5 | 4.0±0.3 | 0.25±0.05 | 1.75 | 0.42 | 200 |
| G1-0040 | 4.0 | 4.5±0.3 | 0.25±0.05 | 2.0 | 0.42 | 200 |
| G1-0045 | 4.5 | 5.0±0.3 | 0.25±0.05 | 2.25 | 0.42 | 100 |
| G1-0050 | 5.0 | 5.5±0.3 | 0.28±0.05 | 2.5 | 0.52 | 100 |
| G1-0060 | 6.0 | 6.5±0.3 | 0.28±0.05 | 3.0 | 0.52 | 100 |
| G1-0070 | 7.0 | 7.6±0.3 | 0.30±0.07 | 3.5 | 0.56 | 100 |
| G1-0080 | 8.0 | 8.6±0.3 | 0.30±0.07 | 4.0 | 0.56 | 100 |
| G1-0090 | 9.0 | 9.6±0.3 | 0.30±0.07 | 4.5 | 0.56 | 100 |
| G1-0100 | 10.0 | 10.7±0.4 | 0.30±0.07 | 5.0 | 0.56 | 100 |
| G1-0110 | 11.0 | 11.7±0.4 | 0.30±0.07 | 5.5 | 0.56 | 100 |
| G1-0120 | 12.0 | 12.7±0.4 | 0.30±0.07 | 6.0 | 0.56 | 100 |
| G1-0130 | 13.0 | 13.7±0.4 | 0.35±0.08 | 6.5 | 0.69 | 100 |
| G1-0140 | 14.0 | 14.7±0.4 | 0.35±0.08 | 7.0 | 0.69 | 100 |
| G1-0150 | 15.0 | 15.7±0.5 | 0.35±0.08 | 7.5 | 0.69 | 100 |
| G1-0160 | 16.0 | 16.7±0.5 | 0.35±0.08 | 8.0 | 0.69 | 100 |
| G1-0170 | 17.0 | 17.7±0.5 | 0.35±0.08 | 8.5 | 0.69 | 100 |
| G1-0180 | 18.0 | 19.0±0.5 | 0.40±0.10 | 9.0 | 0.77 | 100 |
| G1-0200 | 20.0 | 21.0±0.5 | 0.40±0.10 | 10.0 | 0.77 | 100 |
| G1-0220 | 22.0 | 23.0±0.5 | 0.40±0.10 | 11.0 | 0.77 | 100 |
| G1-0250 | 25.0 | 26.0±1.0 | 0.45±0.10 | 12.5 | 0.87 | 50 |
| G1-0280 | 28.0 | 29.0±1.0 | 0.45±0.10 | 14.0 | 0.87 | 50 |
| G1-0300 | 30.0 | 31.5±1.0 | 0.45±0.10 | 15.0 | 0.87 | 50 |
| G1-0350 | 35.0 | 36.5±1.0 | 0.50±0.10 | 17.5 | 0.97 | 50 |
| G1-0400 | 40.0 | 42.0±1.5 | 0.50±0.10 | 20.0 | 0.97 | 50 |
| G1-0450 | 45.0 | 47.0±1.5 | 0.50±0.10 | 22.5 | 0.97 | 25 |
| G1-0500 | 50.0 | 53.0±2.0 | 0.55±0.10 | 25.0 | 0.97 | 25 |
| G1-0600 | 60.0 | 63.0±3.0 | 0.60±0.15 | 30.0 | 1.17 | 25 |
