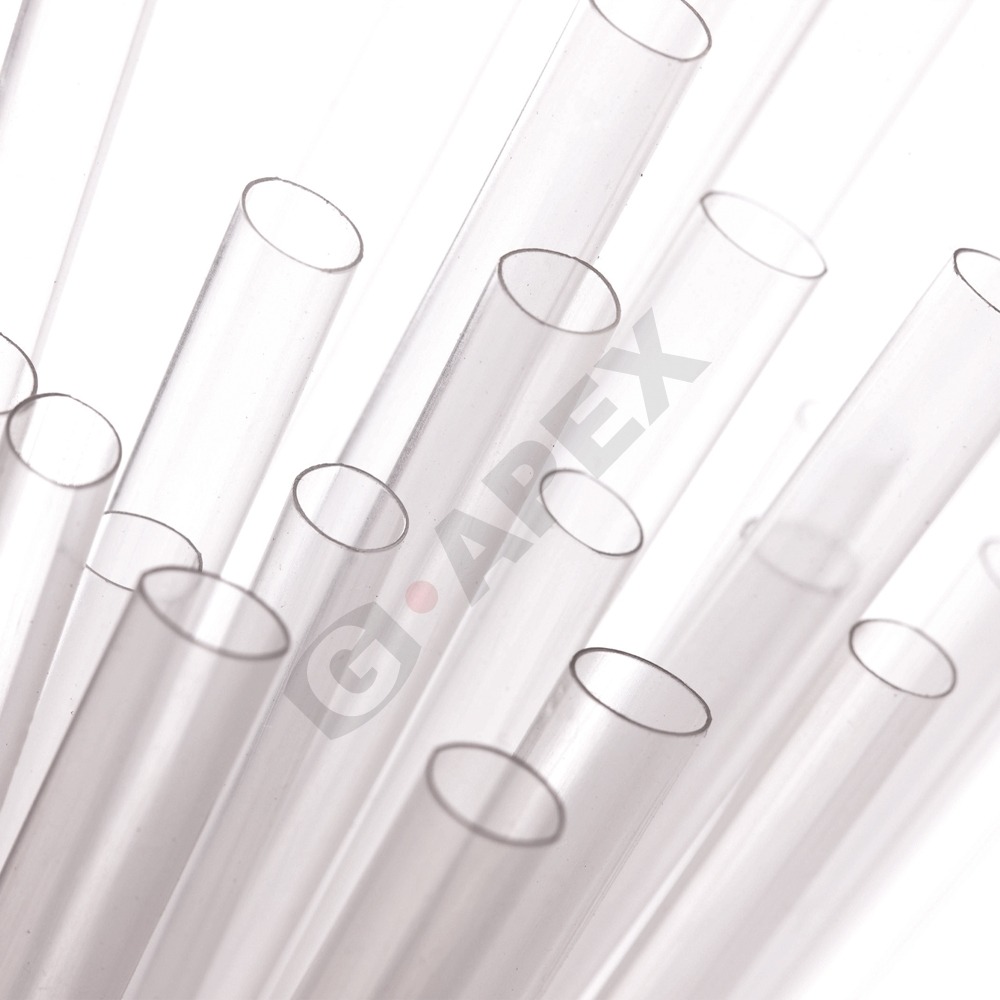

G1 - Non Flame Retardant Heat Shrink Tubing

Applications

G1 is a non flame retardant polyolefin heat shrinkable tubing with the properties of thin wall, halogen free, glossy surface, good transparency and rapid shrinkage at low temperatures. It is widely used in outer insulation protection of electronics and consumer goods. The clear color makes it high transparency, so the condition of covered objects can be checked clearly.

Approvals / Specifications

Operating Temperature Range

  • Continuous operating temperature: -55℃ ~ 105℃
  • Minimum shrink temperature: 70℃
  • Full recovery temperature: Above 100˚C

COLOR

Standard color: clear
Characteristics
  • Shrink ratio: 2:1
  • Low shrink temperature
  • Good transparency flexible
  • Compliance with RoHS
