Crimp tool recommended: G-APEX P/N CT2005

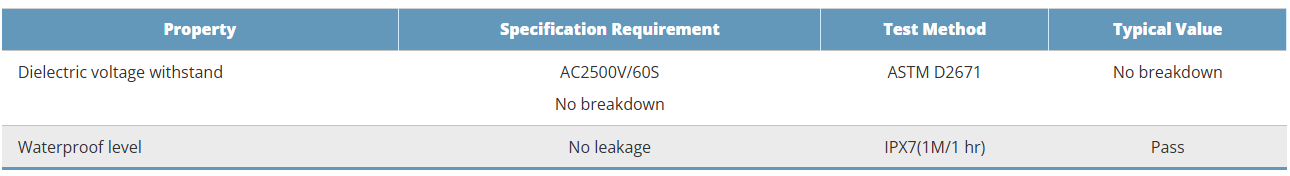

| Property | Specification Requirement | Test Method | Test Value |
|---|---|---|---|
| Voltage Withstand | AC2500V/60S No damage |
ASTM D2671 | No damage |
| Waterproof Rating | No leakage | IPX7 (1M/1 hour) | Pass |

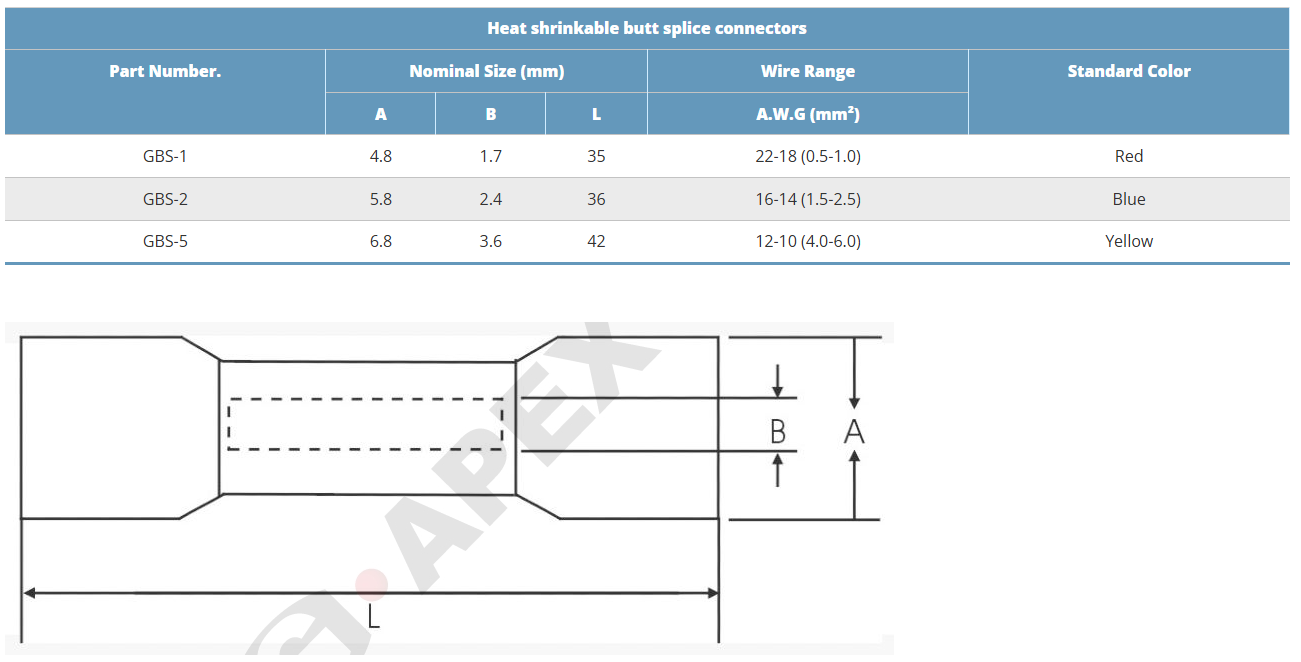

| Heat-Shrink Butt Connector | |||||
|---|---|---|---|---|---|
| Product Code | Product Dimensions (mm) | Wire Size Range | Standard Color | ||
| A | B | L | A.W.G (mm^2) | ||
| GBS-1 | 4.8 | 1.7 | 35 | 22-18 (0.5-1.0) | Red |
| GBS-2 | 5.8 | 2.4 | 36 | 16-14 (1.5-2.5) | Blue |
| GBS-5 | 6.8 | 3.6 | 42 | 12-10 (4.0-6.0) | Yellow |

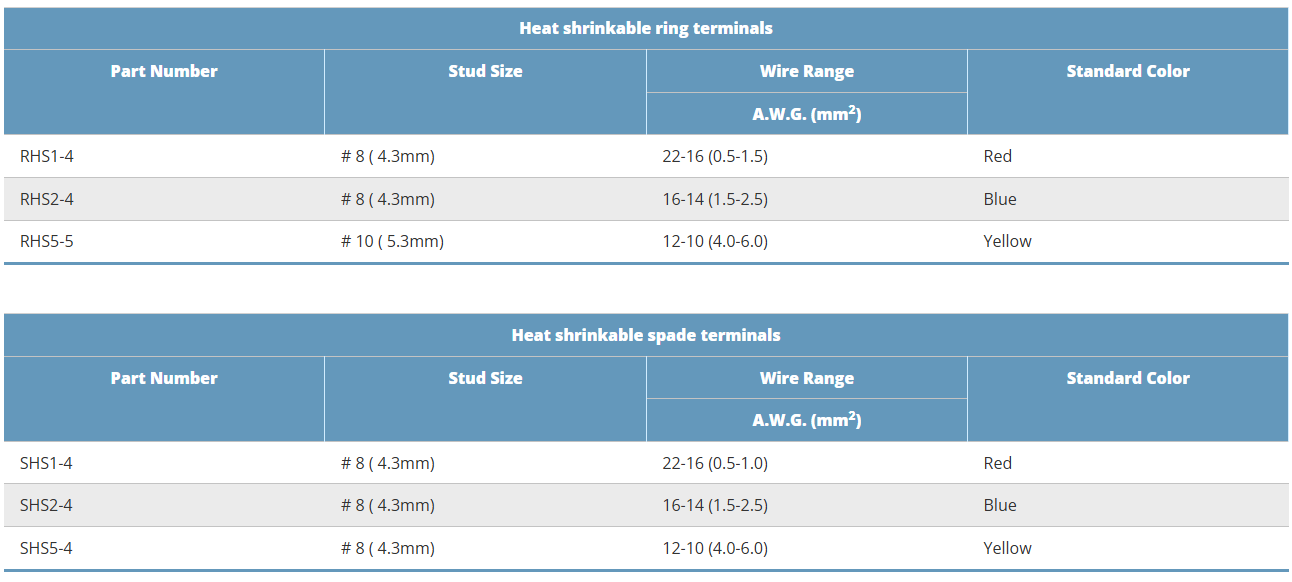

| Heat-Shrink Ring Terminal | |||
|---|---|---|---|
| Product Code | Screw Size | Wire Size Range | Standard Color |
| A.W.G (mm^2) | |||
| RHS1-4 | # 8 (4.3 mm) | 22-16 (0.5-1.5) | Red |
| RHS2-4 | # 8 (4.3 mm) | 16-14 (1.5-2.5) | Blue |
| RHS5-5 | # 10 (5.3 mm) | 12-10 (4.0-6.0) | Yellow |
| Heat-Shrink Spade Terminal | |||
|---|---|---|---|
| Product Code | Screw Size | Wire Size Range | Standard Color |
| A.W.G (mm^2) | |||
| SHS1-4 | # 8 (4.3 mm) | 22-16 (0.5-1.0) | Red |
| SHS2-4 | # 8 (4.3 mm) | 16-14 (1.5-2.5) | Blue |
| SHS5-4 | # 8 (4.3 mm) | 12-10 (4.0-6.0) | Yellow |
