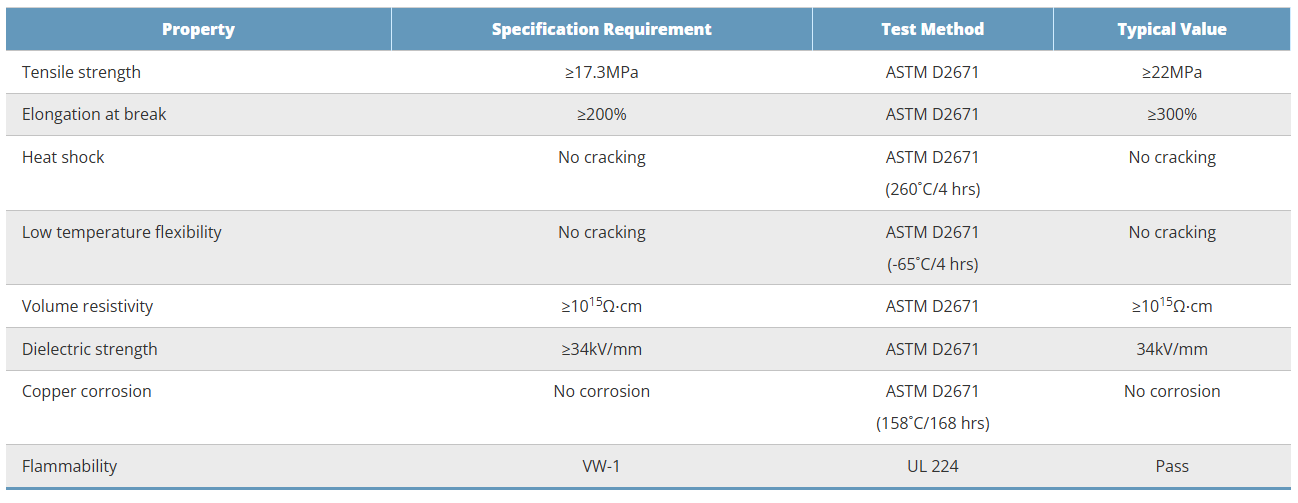

| Property | Specification Requirement | Test Method | Test Value |
|---|---|---|---|
| Tensile Strength | ≥17.3MPa | ASTM D2671 | ≥22MPa |
| Elongation at Break | ≥200% | ASTM D2671 | ≥300% |
| ภาวะช็อกจากความร้อน | No cracking | ASTM D2671 (260°C/4 hours) |
No cracking |
| Low-Temperature Flexibility | No cracking | ASTM D2671 (-65°C/4 hours) |
No cracking |
| Volume Resistivity | ≥10^15 Ω·cm | ASTM D2671 | ≥10^15 Ω·cm |
| Dielectric Strength | ≥34kV/mm | ASTM D2671 | 4kV/mm |
| Copper Stability | No corrosion | ASTM D2671 (158°C/168 hours) |
No corrosion |
| Flammability | VW-1 | UL224 | Pass |

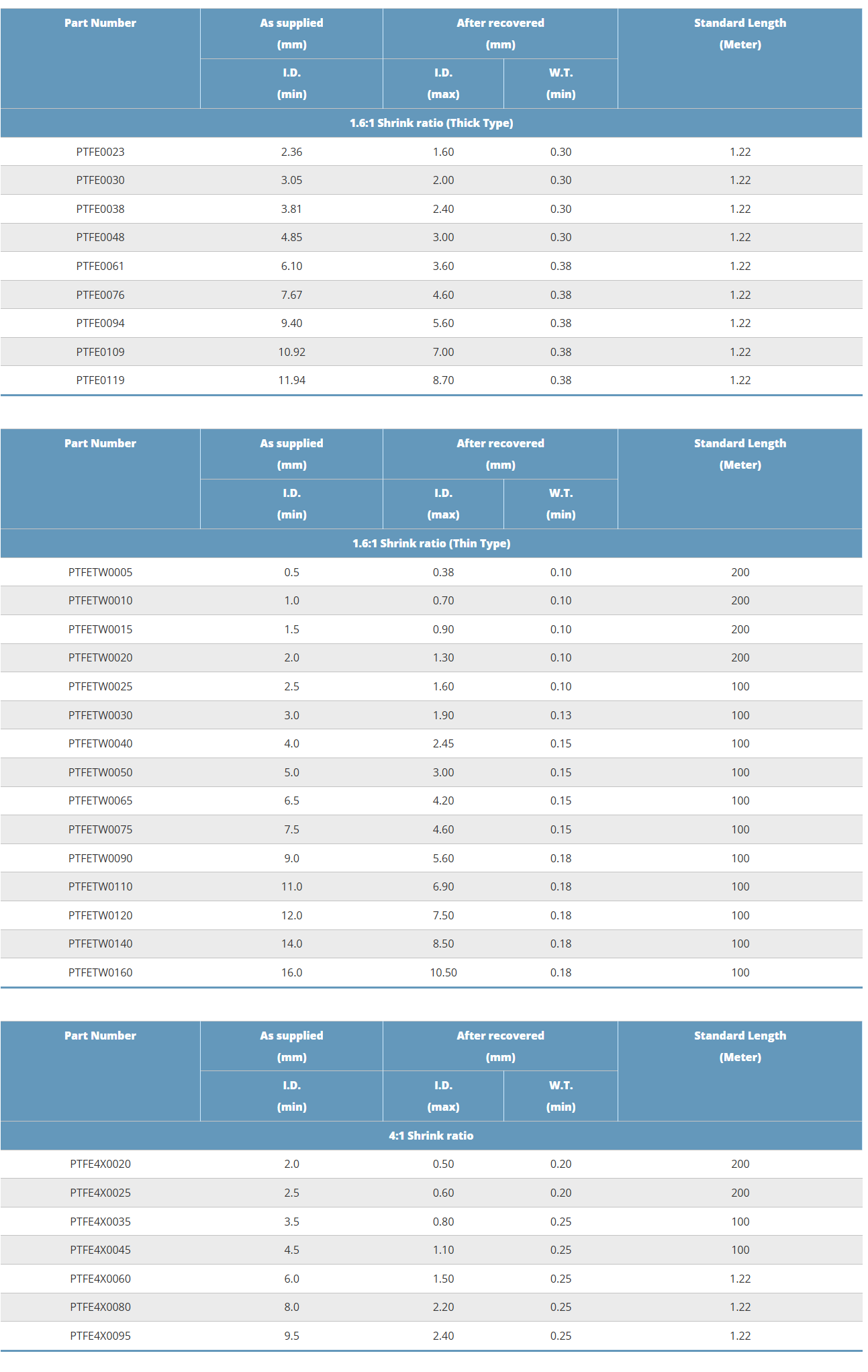

| Product Code | Before Shrinking(mm) | After Shrinking (mm) | Standard Length (m) | |
|---|---|---|---|---|
| Inside Diameter(Min.) | Inside Diameter (Max.) | Wall Thickness | ||
| Shrink Ratio 1.6:1 (Thick-Wall Type) | ||||
| PTFE0023 | 2.36 | 1.60 | 0.30 | 1.22 |
| PTFE0030 | 3.05 | 2.00 | 0.30 | 1.22 |
| PTFE0038 | 3.81 | 2.40 | 0.30 | 1.22 |
| PTFE0048 | 4.85 | 3.00 | 0.30 | 1.22 |
| PTFE0061 | 6.10 | 3.60 | 0.38 | 1.22 |
| PTFE0076 | 7.67 | 4.60 | 0.38 | 1.22 |
| PTFE0094 | 9.40 | 5.60 | 0.38 | 1.22 |
| PTFE0109 | 10.92 | 7.00 | 0.38 | 1.22 |
| PTFE0119 | 11.94 | 8.70 | 0.38 | 1.22 |
| Product Code | Before Shrinking(mm) | After Shrinking (mm) | Standard Length (m) | |
|---|---|---|---|---|
| Inside Diameter(Min.) | Inside Diameter (Max.) | Wall Thickness | ||
| Shrink Ratio 1.6:1 (Thin-Wall Type) | ||||
| PTFETW0005 | 0.5 | 0.38 | 0.10 | 200 |
| PTFETW0010 | 1.0 | 0.70 | 0.10 | 200 |
| PTFETW0015 | 1.5 | 0.90 | 0.10 | 200 |
| PTFETW0020 | 2.0 | 1.30 | 0.10 | 200 |
| PTFETW0025 | 2.5 | 1.60 | 0.10 | 100 |
| PTFETW0030 | 3.0 | 1.90 | 0.13 | 100 |
| PTFETW0040 | 4.0 | 2.45 | 0.15 | 100 |
| PTFETW0050 | 5.0 | 3.00 | 0.15 | 100 |
| PTFETW0065 | 6.5 | 4.20 | 0.15 | 100 |
| PTFETW0075 | 7.5 | 4.60 | 0.15 | 100 |
| PTFETW0090 | 9.0 | 5.60 | 0.18 | 100 |
| PTFETW0110 | 11.0 | 6.90 | 0.18 | 100 |
| PTFETW0120 | 12.0 | 7.50 | 0.18 | 100 |
| PTFETW0140 | 14.0 | 8.50 | 0.18 | 100 |
| PTFETW0160 | 16.0 | 10.50 | 0.18 | 100 |
| Product Code | Before Shrinking(mm) | After Shrinking (mm) | Standard Length (m) | |
|---|---|---|---|---|
| Inside Diameter(Min.) | Inside Diameter (Max.) | Wall Thickness | ||
| Shrink Ratio 4:1 | ||||
| PTFE4X0020 | 2.0 | 0.50 | 0.20 | 200 |
| PTFE4X0025 | 2.5 | 0.60 | 0.20 | 200 |
| PTFE4X0035 | 3.5 | 0.80 | 0.25 | 100 |
| PTFE4X0045 | 4.5 | 1.10 | 0.25 | 100 |
| PTFE4X0060 | 6.0 | 1.50 | 0.25 | 1.22 |
| PTFE4X0080 | 8.0 | 2.20 | 0.25 | 1.22 |
| PTFE4X0095 | 9.5 | 2.40 | 0.25 | 1.22 |
