Shrink ratio: 2:1
Corrosion resistance and flame retardant
Excellent chemical resistance and insulation performance
Red, yellow, blue, green, white and black for color distinction

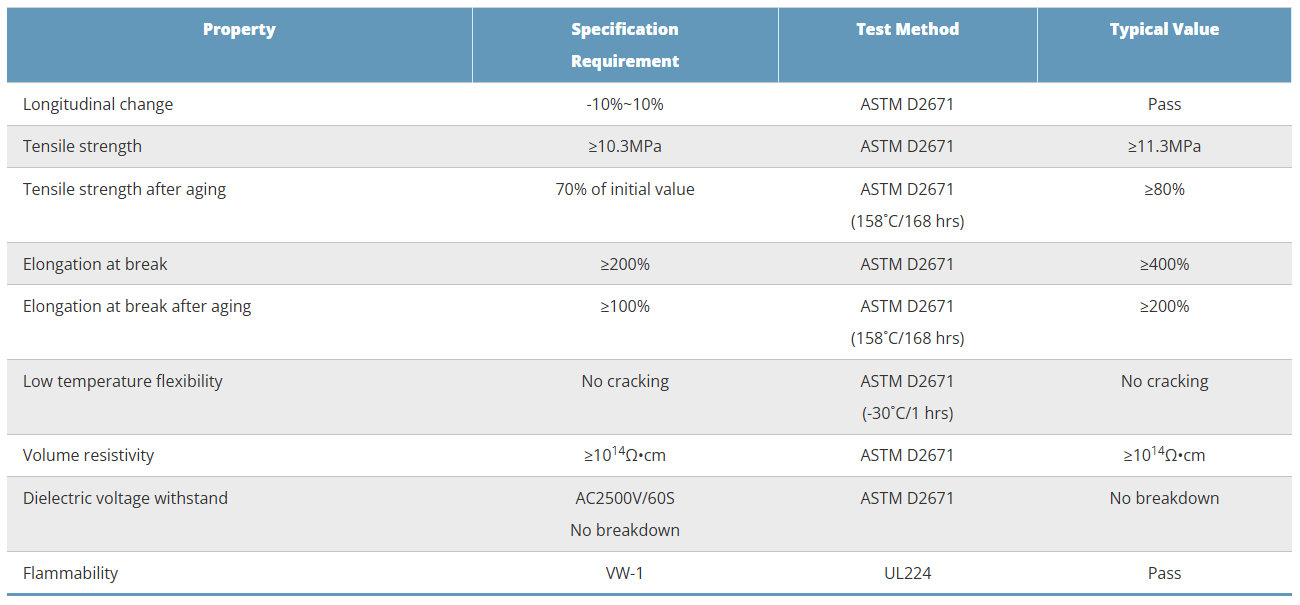

| Property | Specification Requirement | Test Method | Test Value |
|---|---|---|---|
| Longitudinal Change | -10%~10% | ASTM D2671 | Pass |
| Elongation at Break | ≥10.3MPa | ASTM D2671 | ≥11.3MPa |
| Tensile Strength After Aging | 70% of initial value | ASTM D2671 (158°C/168 hours) |
≥80% |
| Tensile Strength | ≥200% | ASTM D2671 | ≥400% |
| Elongation at Break After Aging | ≥100% | ASTM D2671 (158°C/168 hours) |
≥200% |
| Low-Temperature Flexibility | No cracking | ASTM D2671 (-30°C/1 hours) |
No cracking |
| Volume Resistivity | ≥ 10¹⁴ Ω·cm | ASTM D2671 | ≥ 10¹⁴ Ω·cm |
| Voltage Withstand | AC2500V/60S No corrosion | ASTM D2671 | No corrosion |
| Flammability | VW-1 | UL224 | Pass |

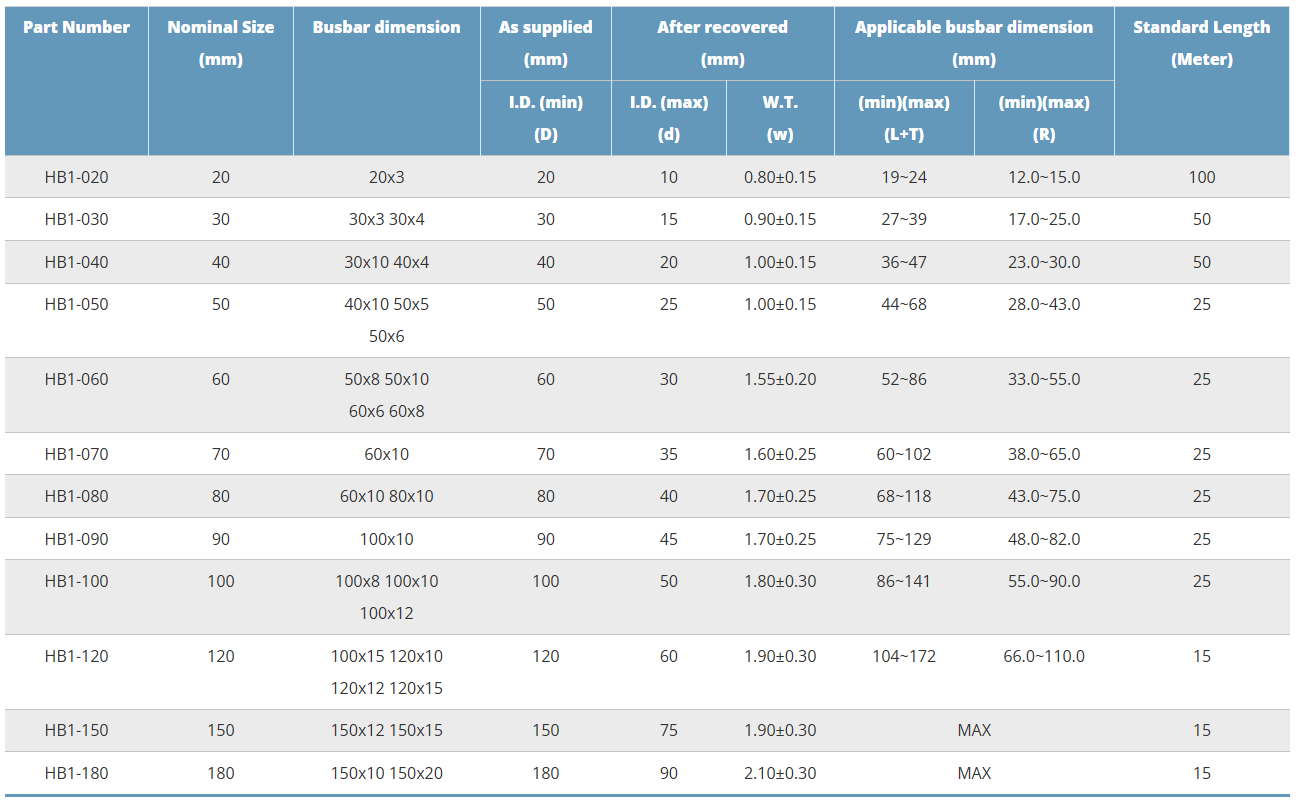

| Product Code | Size mm |
Busbar Size | Before Shrinking (mm) |
After Shrinking (mm) | Applicable Busbar Size (mm) | Standard Length (m) | ||
|---|---|---|---|---|---|---|---|---|
| Inside Diameter (Min.) (D) | Inside Diameter (Max.) (d) | Wall Thickness (w) | Rectangular (Min.–Max.) (L+T) | Circular (Min.–Max.) (R) | ||||
| HB1-020 | 20 | 20×3 | 20 | 10 | 0.80±0.15 | 19~24 | 12.0~15.0 | 100 |
| HB1-030 | 30 | 30×3 30×4 | 30 | 15 | 0.90±0.15 | 27~39 | 17.0~25.0 | 50 |
| HB1-040 | 40 | 30×10 40×4 | 40 | 20 | 1.00±0.15 | 36~47 | 23.0~30.0 | 50 |
| HB1-050 | 50 | 40×10 50×5 50×6 |
50 | 25 | 1.00±0.15 | 44~68 | 28.0~43.0 | 25 |
| HB1-060 | 60 | 50×8 50×10 60×6 60×8 |
60 | 30 | 1.55±0.20 | 52~86 | 33.0~55.0 | 25 |
| HB1-070 | 70 | 60×10 | 70 | 35 | 1.60±0.25 | 60~102 | 38.0~65.0 | 25 |
| HB1-080 | 80 | 60×10 80×10 |
80 | 40 | 1.70±0.25 | 68~118 | 43.0~75.0 | 25 |
| HB1-090 | 90 | 100×10 | 90 | 45 | 1.70±0.25 | 75~129 | 48.0~82.0 | 25 |
| HB1-100 | 100 | 100×8 100×10 100×12 |
100 | 50 | 1.80±0.30 | 86~141 | 55.0~90.0 | 25 |
| HB1-120 | 120 | 100×15 120×10 120×12 120×15 |
120 | 60 | 1.90±0.30 | 104~172 | 66.0~110.0 | 15 |
| HB1-150 | 150 | 150×12 150×15 |
150 | 75 | 1.90±0.30 | MAX | MAX | 15 |
| HB1-180 | 180 | 150×10 150×20 |
180 | 90 | 2.10±0.30 | MAX | MAX | 15 |
