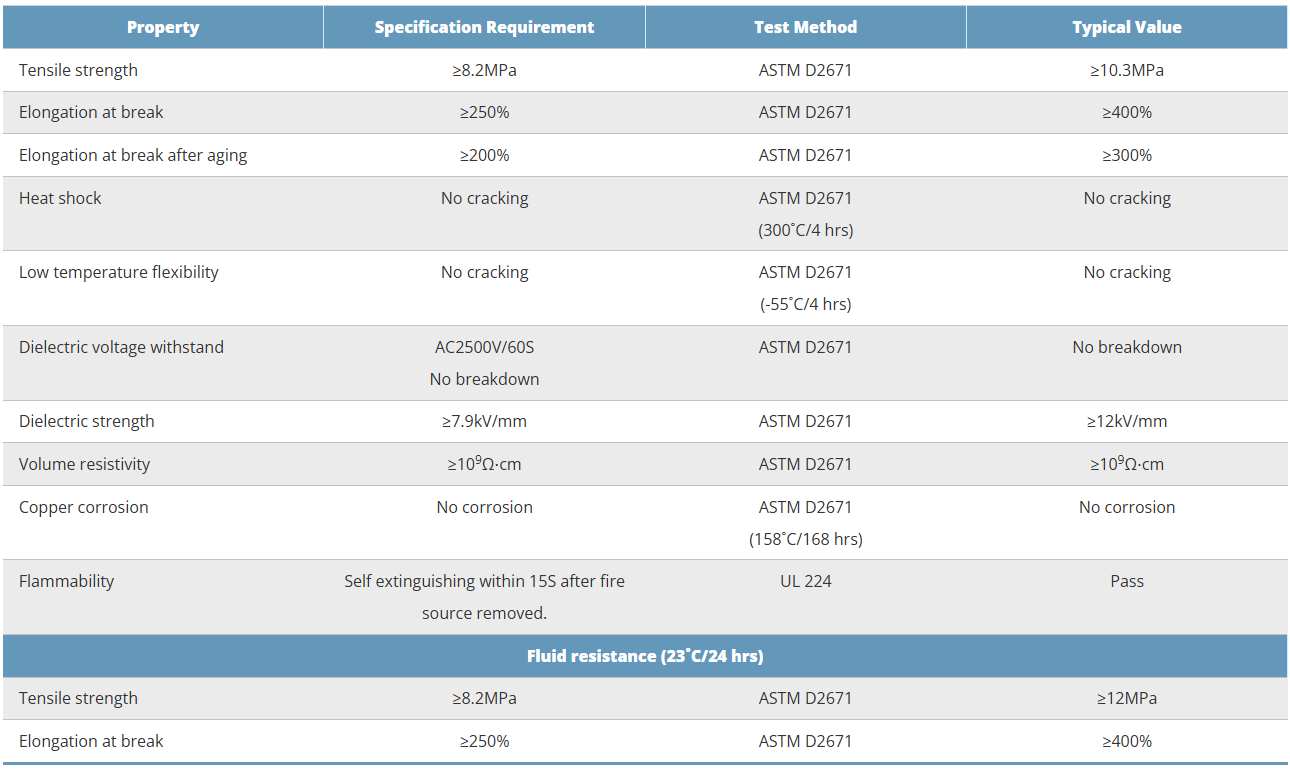

| Property | Specification Requirement | Test Method | Test Value |
|---|---|---|---|
| Tensile Strength | ≥8.2MPa | ASTM D2671 | ≥10.3MPa |
| Elongation at Break | ≥250% | ASTM D2671 | ≥400% |
| Elongation at Break After Aging | ≥200% | ASTM D2671 | ≥300% |
| ภาวะช็อกจากความร้อน | No cracking | ASTM D2671 (300°C/4 hours) |
No cracking |
| Low-Temperature Flexibility | No cracking | ASTM D2671 (-55°C/4 hours) |
No cracking |
| Voltage Withstand | AC2500V/60SNo damage | ASTM D2671 | No damage |
| Dielectric Strength | ≥7.9kV/mm | ASTM D2671 | ≥12kV/mm |
| Volume Resistivity | ≥10^9 Ω·cm | ASTM D2671 | ≥10^9 Ω·cm |
| Copper Stability | No corrosion | ASTM D2671 (158°C/168 hours) |
No corrosion |
| Flammability | Self-extinguishes within 15 seconds after flame exposure | UL224 | Pass |
| คุณสมบัติต้านทานของเหลว (23°C/124 ชั่วโมง) | |||
| Tensile Strength | ≥8.2MPa | ASTM D2671 | ≥12MPa |
| Elongation at Break | ≥250% | ASTM D2671 | ≥400% |
| Product Code | Size | Before Shrinking(mm) | After Shrinking (mm) | Standard Length (m) | ||
|---|---|---|---|---|---|---|
| mm | Inch | Inside Diameter(Min.) | Inside Diameter (Max.) | Wall Thickness (Min.) | ||
| Thick-Wall Type | ||||||
| VITON0024 | 2.4 | 3/32 | 2.4 | 1.2 | 0.50±0.10 | 200 |
| VITON0032 | 3.2 | 1/8 | 3.2 | 1.6 | 0.76±0.13 | 100 |
| VITON0048 | 4.8 | 3/16 | 4.8 | 2.4 | 0.89±0.18 | 100 |
| VITON0064 | 6.4 | 1/4 | 6.4 | 3.2 | 0.89±0.18 | 50 |
| VITON0095 | 9.5 | 3/8 | 9.5 | 4.8 | 0.89±0.18 | 50 |
| VITON0127 | 12.7 | 1/2 | 12.7 | 6.4 | 0.89±0.18 | 50 |
| VITON0191 | 19.1 | 3/4 | 19.1 | 9.5 | 1.07±0.21 | 30 |
| VITON0254 | 25.4 | 1 | 25.4 | 12.7 | 1.25±0.30 | 30 |
| VITON0381 | 38.1 | 1 1/2 | 38.1 | 19.0 | 1.40±0.38 | 30 |
| VITON0508 | 50.8 | 2 | 50.8 | 25.4 | 1.65±0.43 | 25 |
| Thin-Wall Type | ||||||
| VITONTW0024 | 2.4 | 3/32 | 2.4 | 1.2 | 0.30±0.08 | 200 |
| VITONTW0032 | 3.2 | 1/8 | 3.2 | 1.6 | 0.33±0.08 | 100 |
| VITONTW0048 | 4.8 | 3/16 | 4.8 | 2.4 | 0.36±0.10 | 100 |
| VITONTW0064 | 6.4 | 1/4 | 6.4 | 3.2 | 0.41±0.10 | 100 |
| VITONTW0095 | 9.5 | 3/8 | 9.5 | 4.8 | 0.48±0.10 | 100 |
| VITONTW0127 | 12.7 | 1/2 | 12.7 | 6.4 | 0.48±0.10 | 100 |
| VITONTW0191 | 19.1 | 3/4 | 19.1 | 9.5 | 0.69±0.10 | 50 |
| VITONTW0254 | 25.4 | 1 | 25.4 | 12.7 | 0.79±0.10 | 50 |
| VITONTW0381 | 38.1 | 1 1/2 | 38.1 | 19.0 | 0.94±0.10 | 30 |
| VITONTW0508 | 50.8 | 2 | 50.8 | 25.4 | 1.02±0.10 | 30 |
