| Property | Specification Requirement | Test Method | Test Value |
|---|---|---|---|
| Longitudinal Change | -5%~5% | ASTM D2671 | Pass |
| Tensile Strength | ≥13.8MPa | ASTM D2671 | ≥20MPa |
| Elongation at Break After Aging | ≥150% | ASTM D2671 | ≥250% |
| Voltage Withstand | AC2500V/60SNo damage | ASTM D2671 | No damage |
| Volume Resistivity | ≥10^15 Ω·cm | ASTM D2671 | ≥10^16 Ω·cm |
| Copper Stability | No corrosion | ASTM D2671 (158°C/168 hours) |
No corrosion |
| Flammability | VW-1 | UL224 | Pass |

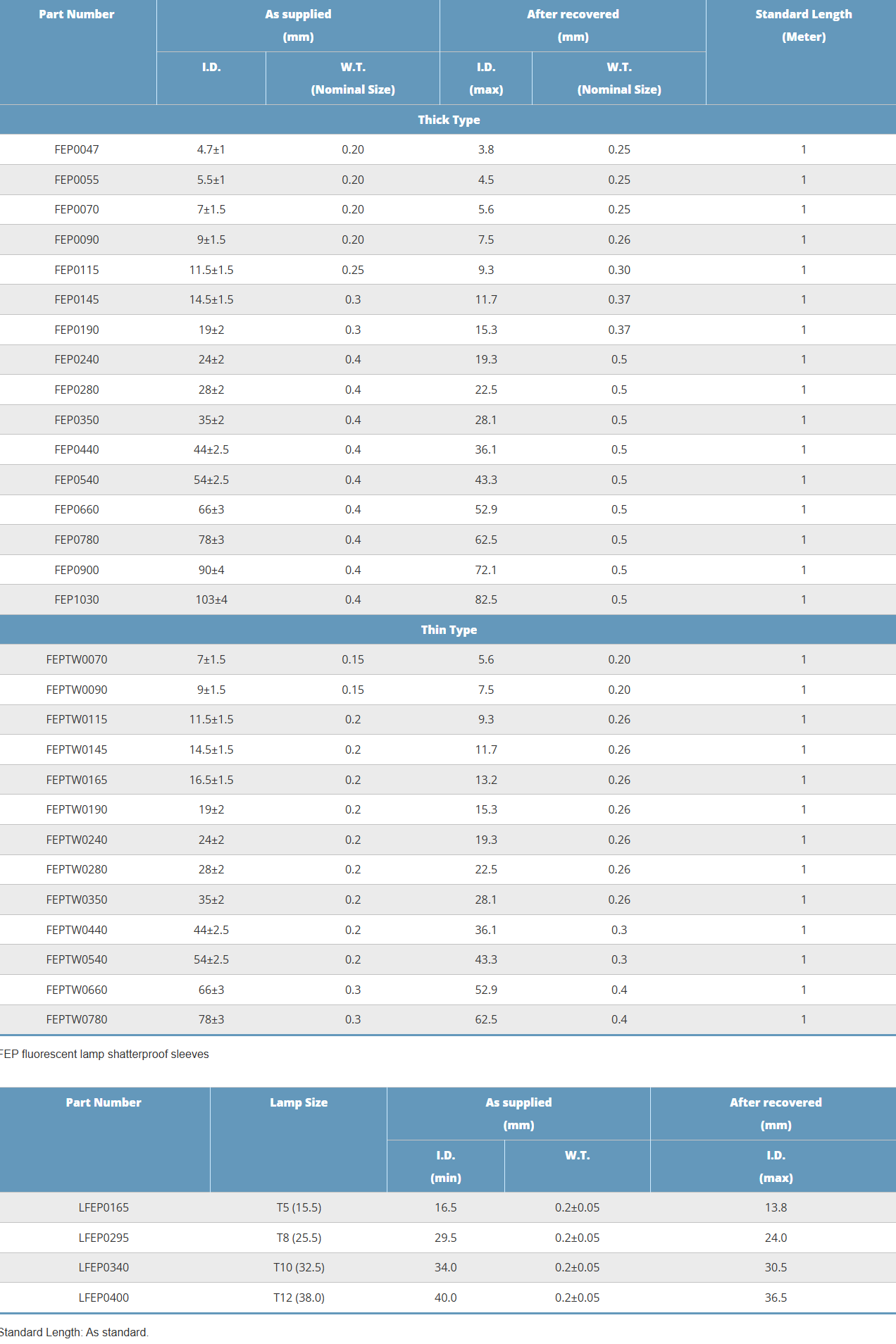

| Product Code | Before Shrinking(mm) | After Shrinking (mm) | Standard Length (m) | ||
|---|---|---|---|---|---|
| Inside Diameter(Min.) | Wall Thickness | Inside Diameter (Max.) | Wall Thickness | ||
| Thick-Wall Type | |||||
| FEP0047 | 4.7±1 | 0.20 | 3.8 | 0.25 | 1 |
| FEP0055 | 5.5±1 | 0.20 | 4.5 | 0.25 | 1 |
| FEP0070 | 7±1.5 | 0.20 | 5.6 | 0.25 | 1 |
| FEP0090 | 9±1.5 | 0.20 | 7.5 | 0.26 | 1 |
| FEP0115 | 11.5±1.5 | 0.25 | 9.3 | 0.30 | 1 |
| FEP0145 | 14.5±1.5 | 0.3 | 11.7 | 0.37 | 1 |
| FEP0190 | 19±2 | 0.3 | 15.3 | 0.37 | 1 |
| FEP0240 | 24±2 | 0.4 | 19.3 | 0.5 | 1 |
| FEP0280 | 28±2 | 0.4 | 22.5 | 0.5 | 1 |
| FEP0350 | 35±2 | 0.4 | 28.1 | 0.5 | 1 |
| FEP0440 | 44±2.5 | 0.4 | 36.1 | 0.5 | 1 |
| FEP0540 | 54±2.5 | 0.4 | 43.3 | 0.5 | 1 |
| FEP0660 | 66±3 | 0.4 | 52.9 | 0.5 | 1 |
| FEP0780 | 78±3 | 0.4 | 62.5 | 0.5 | 1 |
| FEP0900 | 90±4 | 0.4 | 72.1 | 0.5 | 1 |
| FEP1030 | 103±4 | 0.4 | 82.5 | 0.5 | 1 |
| Thin-Wall Type | |||||
| FEPTW0070 | 7±1.5 | 0.15 | 5.6 | 0.20 | 1 |
| FEPTW0090 | 9±1.5 | 0.15 | 7.5 | 0.20 | 1 |
| FEPTW0115 | 11.5±1.5 | 0.20 | 9.3 | 0.26 | 1 |
| FEPTW0145 | 14.5±1.5 | 0.20 | 11.7 | 0.26 | 1 |
| FEPTW0165 | 16.5±1.5 | 0.20 | 13.2 | 0.26 | 1 |
| FEPTW0190 | 19±2 | 0.20 | 15.3 | 0.26 | 1 |
| FEPTW0240 | 24±2 | 0.20 | 19.3 | 0.26 | 1 |
| FEPTW0280 | 28±2 | 0.20 | 22.5 | 0.26 | 1 |
| FEPTW0350 | 35±2 | 0.20 | 28.1 | 0.26 | 1 |
| FEPTW0440 | 44±2.5 | 0.20 | 36.1 | 0.3 | 1 |
| FEPTW0540 | 54±2.5 | 0.20 | 43.3 | 0.3 | 1 |
| FEPTW0660 | 66±3 | 0.20 | 52.9 | 0.4 | 1 |
| FEPTW0780 | 78±3 | 0.20 | 62.5 | 0.4 | 1 |
| Product Code | Lamp Size | After Shrinking (mm) | After Shrinking (mm) | |
|---|---|---|---|---|
| Inside Diameter(Min.) | Wall Thickness | Inside Diameter (Max.) | ||
| LFEP0165 | T5 (15.5) | 16.5 | 0.2±0.05 | 13.8 |
| LFEP0295 | T8 (25.5) | 29.5 | 0.2±0.05 | 24.0 |
| LFEP0340 | T10 (32.5) | 34.0 | 0.2±0.05 | 30.5 |
| LFEP0400 | T12 (38.0) | 40.0 | 0.2±0.05 | 36.5 |
