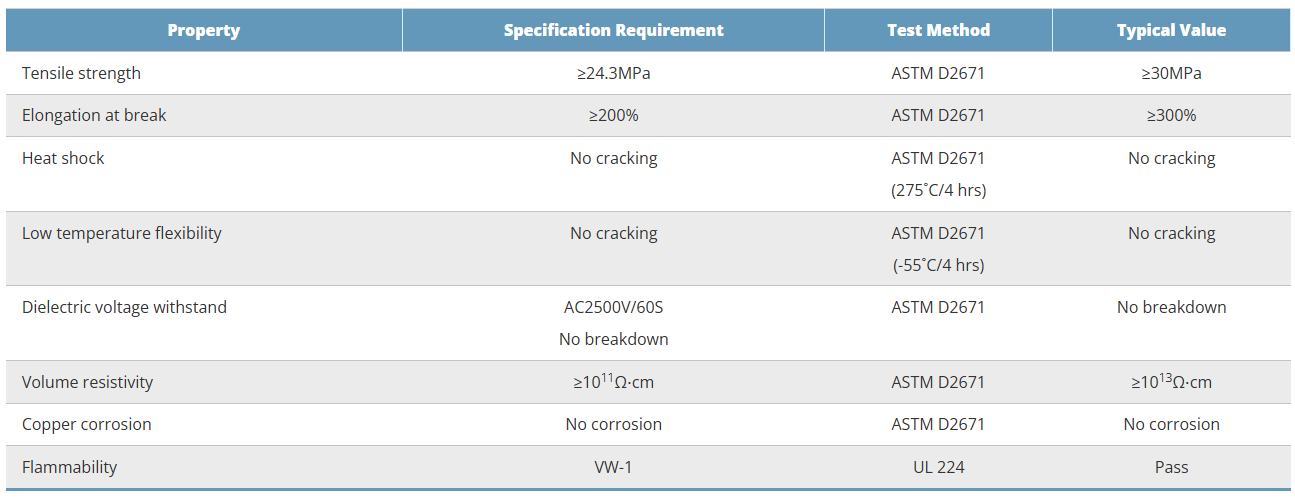

| Property | Specification Requirement | Test Method | Test Value |
|---|---|---|---|
| Tensile Strength | ≥24.3MPa | ASTM D2671 | ≥30MPa |
| Elongation at Break | ≥200% | ASTM D2671 | ≥300% |
| ภาวะช็อกจากความร้อน | No cracking | ASTM D2671 (275°C/4 hours) |
No cracking |
| Low-Temperature Flexibility | No cracking | ASTM D2671 (-55°C/4 hours) |
No cracking |
| Voltage Withstand | AC2500V/60SNo damage | ASTM D2671 | No damage |
| Volume Resistivity | ≥10^11 Ω·cm | ASTM D2671 | ≥10^13 Ω·cm |
| Copper Stability | No corrosion | ASTM D2671 | No corrosion |
| Flammability | VW-1 | UL224 | Pass |

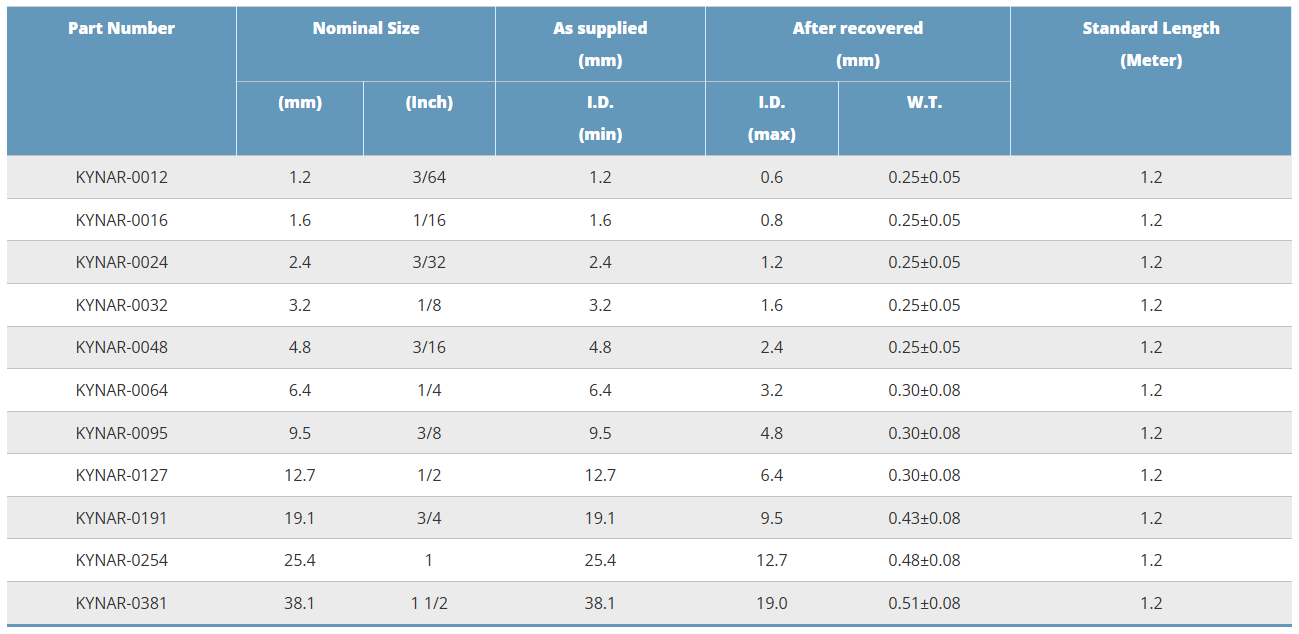

| Product Code | Size | Before Shrinking(mm) | After Shrinking (mm) | Standard Length (m) | ||
|---|---|---|---|---|---|---|
| mm | Inch | Inside Diameter(Min.) | Inside Diameter (Max.) | Wall Thickness (Min.) | ||
| KYNAR-0012 | 1.2 | 3/64 | 1.2 | 0.6 | 0.25±0.05 | 1.2 |
| KYNAR-0016 | 1.6 | 1/16 | 1.6 | 0.8 | 0.25±0.05 | 1.2 |
| KYNAR-0024 | 2.4 | 3/32 | 2.4 | 1.2 | 0.25±0.05 | 1.2 |
| KYNAR-0032 | 3.2 | 1/8 | 3.2 | 1.6 | 0.25±0.05 | 1.2 |
| KYNAR-0048 | 4.8 | 3/16 | 4.8 | 2.4 | 0.25±0.05 | 1.2 |
| KYNAR-0064 | 6.4 | 1/4 | 6.4 | 3.2 | 0.30±0.08 | 1.2 |
| KYNAR-0095 | 9.5 | 3/8 | 9.5 | 4.8 | 0.30±0.08 | 1.2 |
| KYNAR-0127 | 12.7 | 1/2 | 12.7 | 6.4 | 0.30±0.08 | 1.2 |
| KYNAR-0191 | 19.1 | 3/4 | 19.1 | 9.5 | 0.43±0.08 | 1.2 |
| KYNAR-0254 | 25.4 | 1 | 25.4 | 12.7 | 0.48±0.08 | 1.2 |
| KYNAR-0381 | 38.1 | 11/2 | 38.1 | 19 | 0.51±0.08 | 1.2 |
