HBT - High Voltage Silicone Busbar Insulation Tape (Withstand voltage up to 15~24kV)

Applications

ผลิตภัณฑ์นี้ทำจากยางซิลิโคน มันตภภาพรังสีซึ่งสีซึ่งมีคณสมบัติทางไฟฟ้า เคมี และกายภาพที่ดีเยี่ยม เหมาะสำหรับใช้เป็นฉนวนป้องกันรอยต่อสายเคเบิลหรือบัสบาร์ทุกรูปทรงในสวิตช์เกียร์ ใช้งานง่ายในทุกสภาพแวดล้อมโดยไม่ใช้ความร้อน

Approvals / Specifications

–

Operating Temperature Range

  • Continuous operating temperature: -60℃ ~ 200℃

COLOR

Standard color: red
Characteristics
  • Excellent self-fusing
  • Suitable for construction in various temperature environments, the product is flame retardant, anti-corona and anti-arc
  • เหมาะสำหรับการใช้งานในสภาพแวดล้อมที่มีอุณหภูมิต่างๆ ผลิตภัณฑ์นี้กันกันไฟ ป้องกันไฟและป้องกันส่วนโค้ง ชั้นเดียวทนทานต่อ 15kV สองชั้นสามารถป้องกันแรงดันไฟฟ้าใต้สูงถึง 24 KV

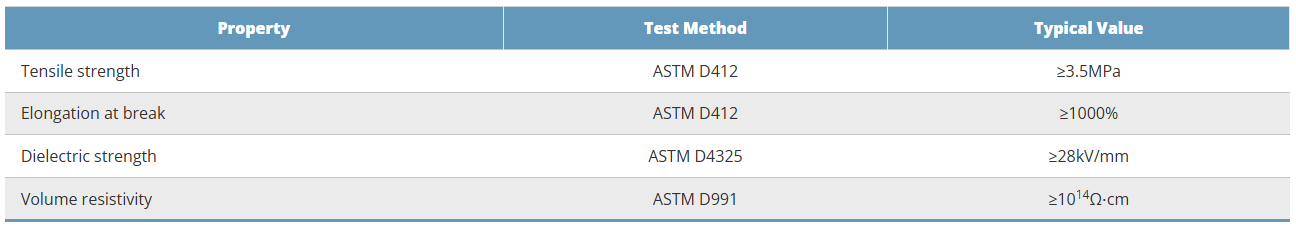

Property Test Method Test Value
Tensile Strength ASTM D412 ≥3.5MPa
Elongation at Break ASTM D412 ≥1000%
Dielectric Strength ASTM D4325 ≥28 kV/mm
Volume Resistivity ASTM D991 ≥10^14 Ω·cm

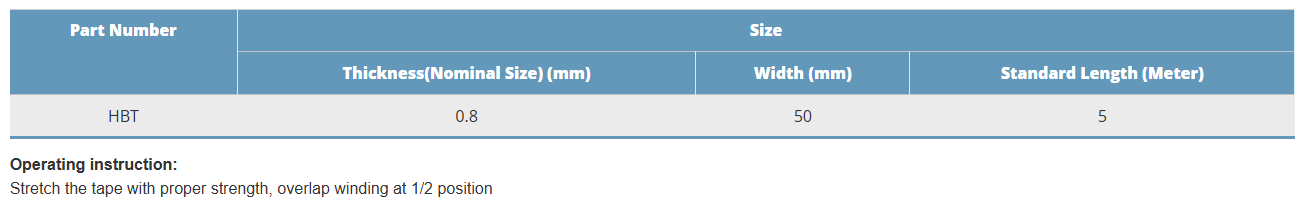

Product Code Size
Thickness (mm) Width (mm) Standard Length (mm)
HBT 0.8 50 5

คู่มือการใช้งาน: ยืดเทปด้วยความแรงที่เหมาะสม แล้วพันไว้ประมาณ ½ ตำแหน่ง
