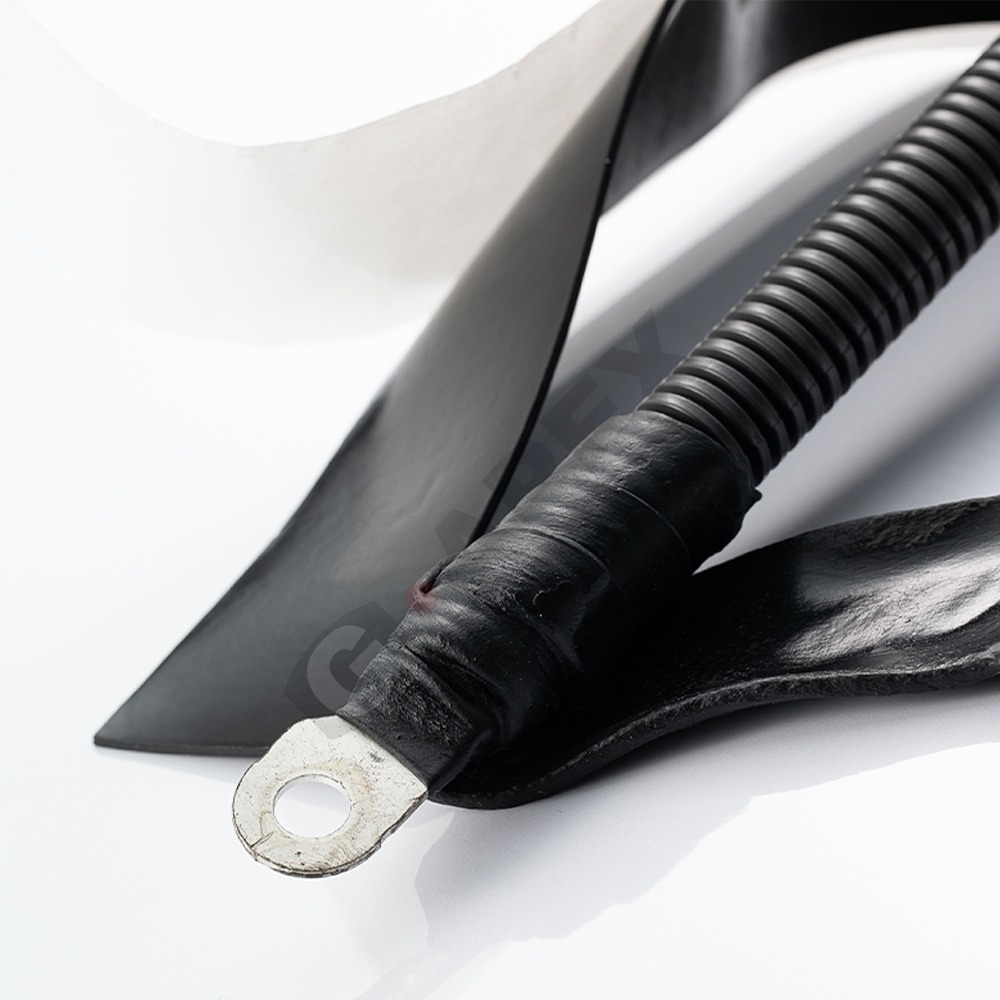

WT300 - Self-Fusing Insulation Caulking Mastic Tape

Applications

WT300 is a flexible and elastic rubber material mastic tape, great insulation performance used with the PVC tape can apply to the high voltage cable joints or the insulation and waterproof protection for the branch of the busbar. Good plasticity can be used for insulation and waterproofing on irregular shapes.

Approvals / Specifications

–

Operating Temperature Range

  • Continuous operating temperature: -40℃ ~ 90℃

COLOR

Standard color: black
Characteristics

Excellent waterproof seal

Weather resistance and anti-aging

Flexible, elastic and easy to shape

Property Test Method Test Value
Insulation Performance ASTM D2671 ≥15 kV/mm
Volume Resistivity ASTM D991 ≥10^14 Ω·cm

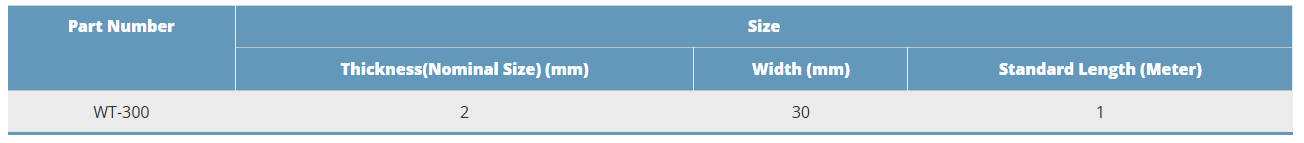

Product Code Size
Thickness (mm) Width (mm) Standard Length (mm)
WT-300 2 30 1
