| Property | Specification Requirement | Test Method | Test Value |
|---|---|---|---|
| Longitudinal Change | 0%~10% | ASTM D2671 | Pass |
| Tensile Strength | ≥10.3MPa | ASTM D2671 | ≥14MPa |
| Elongation at Break | ≥200% | ASTM D2671 | ≥200% |
| Tensile Strength After Aging | 70% of initial value | ASTM D2671 (158°C/168 hours) |
≥70% |
| Elongation at Break After Aging | ≥100% | ASTM D2671 (158°C/168 hours) |
≥100% |
| ภาวะช็อกจากความร้อน | No cracking | ASTM D2671 (250°C/4 hours) |
No cracking |
| Low-Temperature Flexibility | No cracking | ASTM D2671 (-40°C/4 hours) |
No cracking |
| Voltage Withstand | AC2500V/60SNo damage | ASTM D2671 | No damage |
| Volume Resistivity | ≥10^14 Ω·cm | ASTM D2671 | ≥10^14 Ω·cm |
| Flammability | Self-extinguishes within 30 seconds after flame exposure | Heat-shrink tubing burned vertically on a mandrel for 30 seconds | Pass |

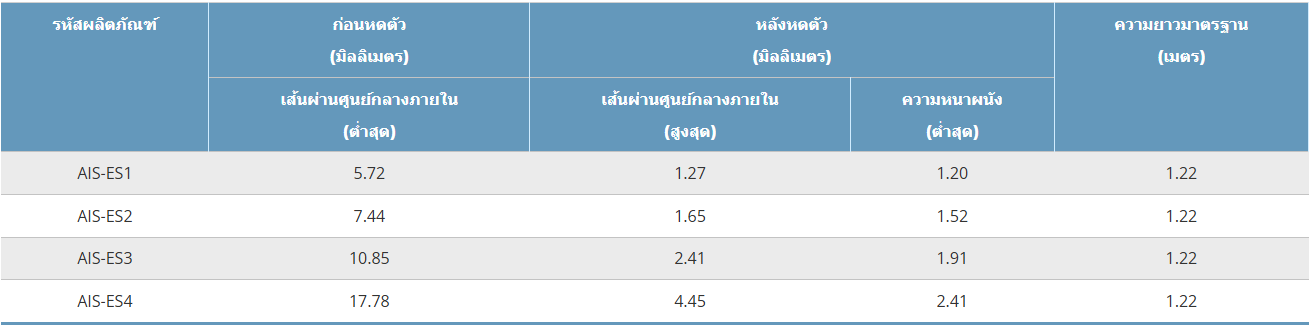

| Product Code | Before Shrinking(mm) | After Shrinking (mm) | Standard Length (m) | |
|---|---|---|---|---|
| Inside Diameter(Min.) | Inside Diameter (Max.) | Wall Thickness (Min.) | ||
| AIS-ES1 | 5.72 | 1.27 | 1.20 | 1.22 |
| AIS-ES2 | 7.44 | 1.65 | 1.52 | 1.22 |
| AIS-ES3 | 10.85 | 2.41 | 1.91 | 1.22 |
| AIS-ES4 | 17.78 | 4.45 | 2.41 | 1.22 |
