| Property | Specification Requirement | Test Method | Test Value |
|---|---|---|---|
| Longitudinal Change | -10%~10% | ASTM D2671 | Pass |
| Tensile Strength | ≥10.3MPa | ASTM D2671 | ≥11.3MPa |
| Elongation at Break | ≥200% | ASTM D2671 | ≥400% |
| Tensile Strength After Aging | 70% of initial value | ASTM D2671 (158°C/168 hours) | ≥80% |
| Elongation at Break After Aging | ≥100% | ASTM D2671 (158°C/168 hours) | ≥200% |
| ภาวะช็อกจากความร้อน | No cracking | ASTM D2671 (200°C/4 hours) | No cracking |
| Low-Temperature Flexibility | No cracking | ASTM D2671 (-30°C/1 hours) | No cracking |
| Voltage Withstand | AC2500V/60SNo damage | ASTM D2671 | No damage |
| Volume Resistivity | ≥10^14 Ω·cm | ASTM D2671 | ≥10^14 Ω·cm |
| Insulation Performance | ≥19.7kV/mm | ASTM D2671 | 22 kV/mm |
| Flammability | VW-1 | UL224 | Pass |

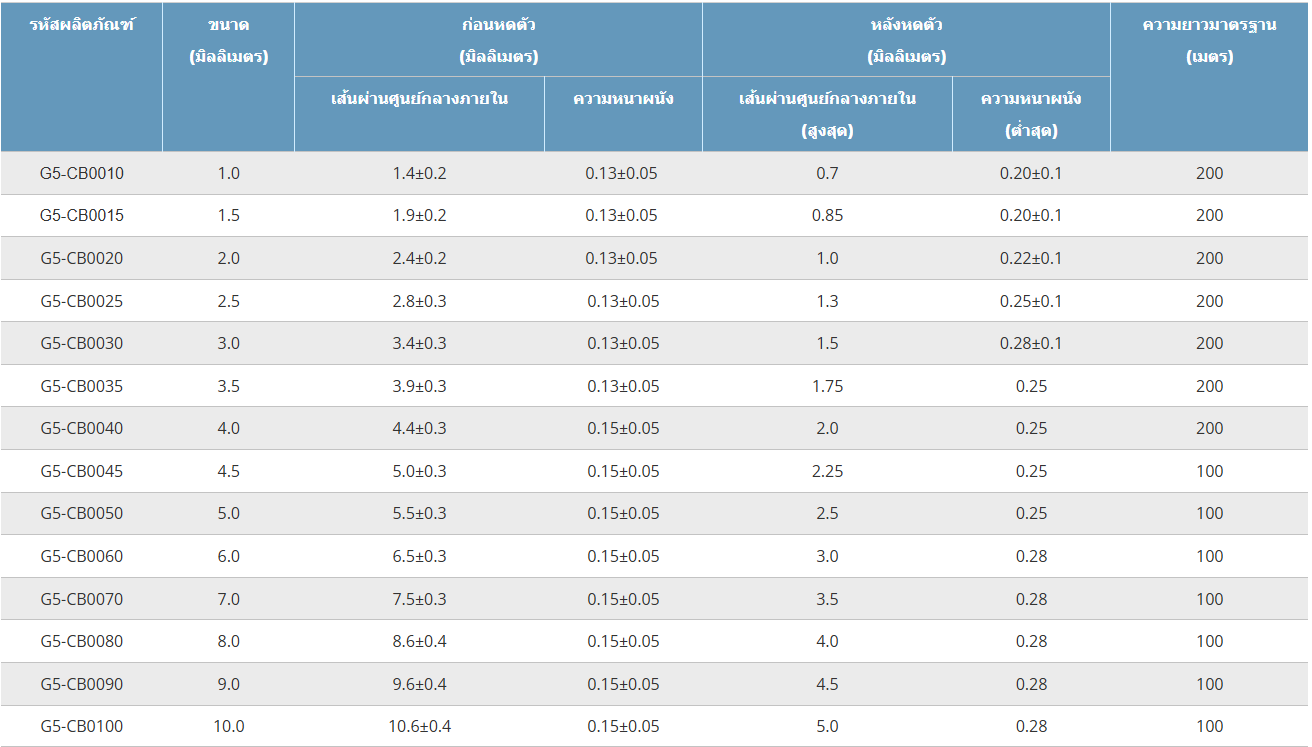

| Product Code | Size(mm) | Before Shrinking(mm) | After Shrinking (mm) | Standard Length (m) | ||
|---|---|---|---|---|---|---|
| Inside Diameter | Wall Thickness | Inside Diameter (Max.) | Wall Thickness (Min.) | |||
| G5-CB0010 | 1.0 | 1.4±0.2 | 0.13±0.05 | 0.7 | 0.20±0.1 | 200 |
| G5-CB0015 | 1.5 | 1.9±0.3 | 0.13±0.05 | 0.85 | 0.20±0.1 | 200 |
| G5-CB0020 | 2.0 | 2.4±0.2 | 0.13±0.05 | 1.0 | 0.22±0.1 | 200 |
| G5-CB0025 | 2.5 | 2.8±0.3 | 0.13±0.05 | 1.3 | 0.25±0.1 | 200 |
| G5-CB0030 | 3.0 | 3.4±0.3 | 0.13±0.05 | 1.5 | 0.28±0.1 | 200 |
| G5-CB0035 | 3.5 | 3.9±0.3 | 0.13±0.05 | 1.75 | 0.25 | 200 |
| G5-CB0040 | 4.0 | 4.4±0.3 | 0.15±0.05 | 2.0 | 0.25 | 200 |
| G5-CB0045 | 4.5 | 5.0±0.3 | 0.15±0.05 | 2.25 | 0.25 | 100 |
| G5-CB0050 | 5.0 | 5.5±0.3 | 0.15±0.05 | 2.5 | 0.28 | 100 |
| G5-CB0060 | 6.0 | 6.5±0.3 | 0.15±0.05 | 3.0 | 0.28 | 100 |
| G5-CB0070 | 7.0 | 7.5±0.3 | 0.15±0.05 | 3.5 | 0.28 | 100 |
| G5-CB0080 | 8.0 | 8.6±0.4 | 0.15±0.07 | 4.0 | 0.28 | 100 |
| G5-CB0090 | 9.0 | 9.6±0.4 | 0.15±0.07 | 4.5 | 0.28 | 100 |
| G5-CB0100 | 10.0 | 10.6±0.4 | 0.15±0.07 | 5.0 | 0.28 | 100 |
| G5-CB0110 | 11.0 | 11.6±0.4 | 0.18±0.07 | 5.5 | 0.28 | 100 |
| G5-CB0120 | 12.0 | 12.6±0.4 | 0.20±0.07 | 6.0 | 0.28 | 100 |
| G5-CB0130 | 13.0 | 13.6±0.4 | 0.20±0.07 | 6.5 | 0.30 | 100 |
| G5-CB0140 | 14.0 | 14.6±0.4 | 0.20±0.08 | 7.0 | 0.30 | 100 |
| G5-CB0150 | 15.0 | 15.6±0.5 | 0.20±0.08 | 7.5 | 0.32 | 100 |
| G5-CB0160 | 16.0 | 16.6±0.5 | 0.20±0.08 | 8.05 | 0.32 | 100 |
