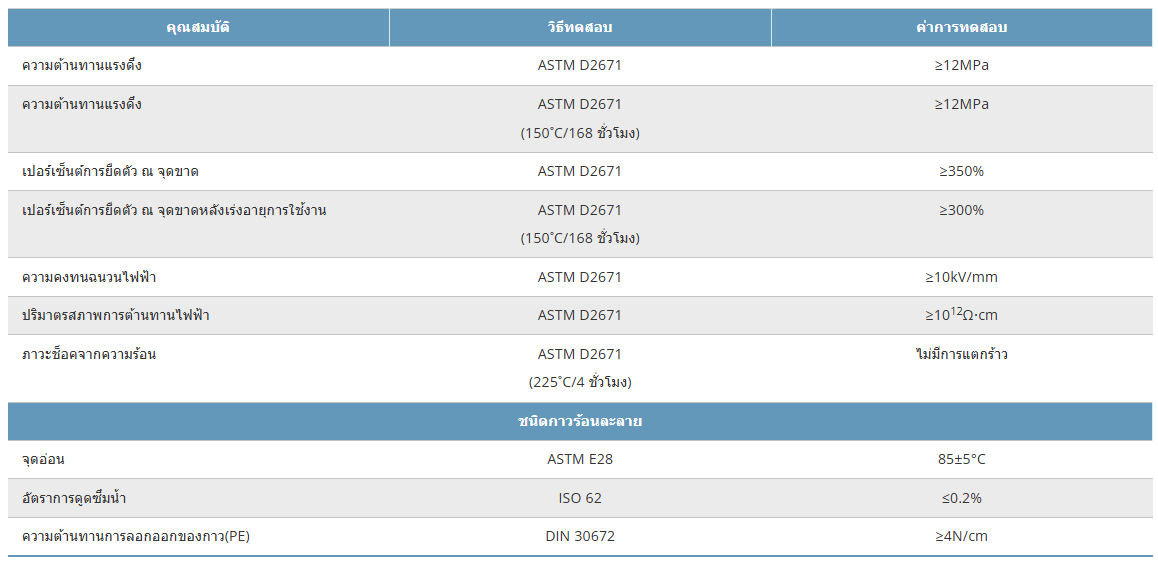

| Property | Test Method | Test Value |
|---|---|---|
| Tensile Strength | ASTM D2671 | ≥12MPa |
| Tensile Strength After Aging | ASTM D2671 (150°C/168 hours) |
≥12MPa |
| Elongation at Break | ASTM D2671 | ≥350% |
| Elongation at Break After Aging | ASTM D2671 (150°C/168 hours) |
≥300% |
| Dielectric Strength | ASTM D2671 | ≥10kV/mm |
| Volume Resistivity | ASTM D2671 | ≥10^12 Ω·cm |
| ภาวะช็อกจากความร้อน | ASTM D2671 (225°C/4 hours) |
No cracking |
| Hot-Melt Adhesive | ||
| จุดอ่อนตัว | ASTM E28 | 85±5°C |
| Water Absorption | ISO 62 | ≤0.2% |
| ความต้านทานการลอกออกของกาว (PE) | DIN 30672 | ≥4N/cm |

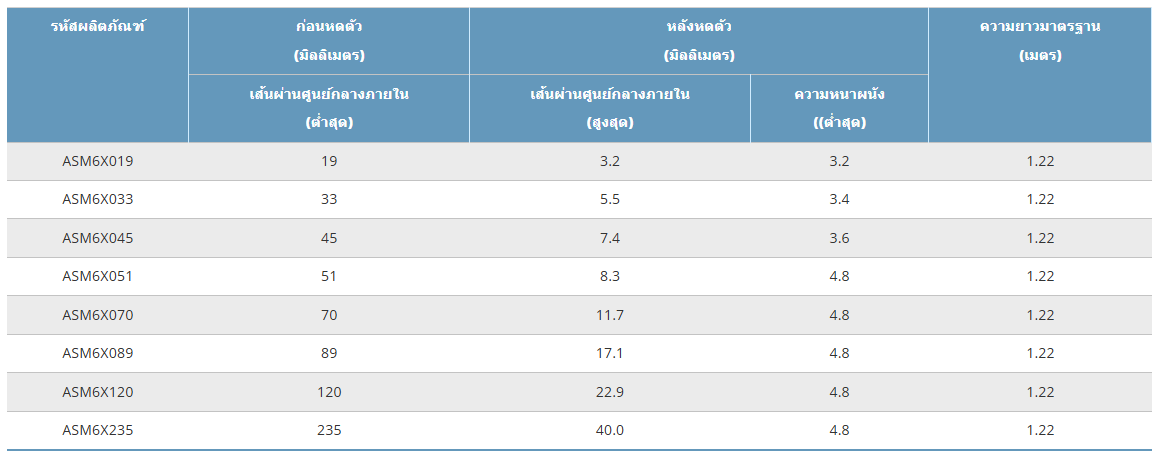

| Product Code | Before Shrinking(mm) | After Shrinking (mm) | Standard Length (m) | |
|---|---|---|---|---|
| Inside Diameter(Min.) | Inside Diameter (Max.) | Wall Thickness (Min.) | ||
| ASM6X019 | 19 | 3.2 | 3.2 | 1.22 |
| ASM6X033 | 33 | 5.5 | 3.4 | 1.22 |
| ASM6X045 | 45 | 7.4 | 3.6 | 1.22 |
| ASM6X051 | 51 | 8.3 | 4.8 | 1.22 |
| ASM6X070 | 70 | 11.7 | 4.8 | 1.22 |
| ASM6X089 | 89 | 17.1 | 4.8 | 1.22 |
| ASM6X120 | 120 | 22.9 | 4.8 | 1.22 |
| ASM6X235 | 235 | 40.0 | 4.8 | 1.22 |
