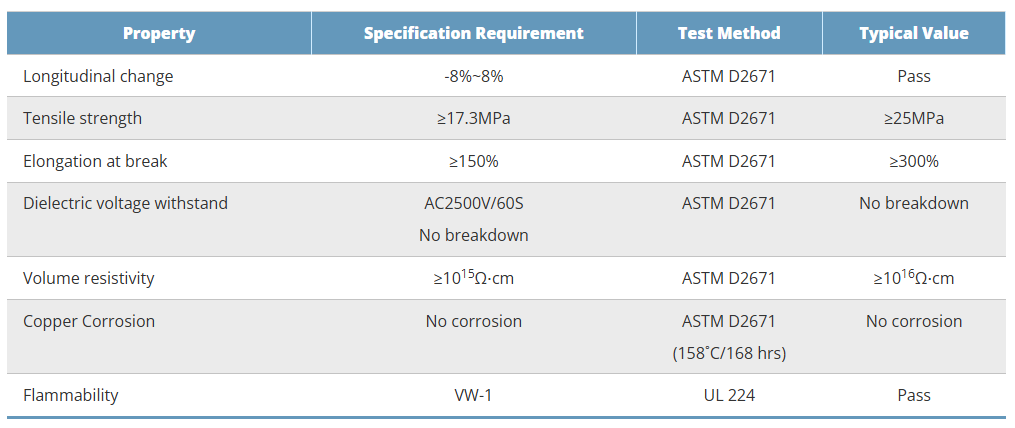

| Property | Specification Requirement | Test Method | Test Value |
|---|---|---|---|
| Longitudinal Change | -8%~8% | ASTM D2671 | Pass |
| Tensile Strength | ≥17.3MPa | ASTM D2671 | ≥25MPa |
| Tensile Strength After Aging | ≥150% | ASTM D2671 | ≥300% |
| Voltage Withstand | AC2500V/60S No damage |
ASTM D2671 | No damage |
| Volume Resistivity | ≥10^15 Ω·cm | ASTM D2671 | ≥10^15 Ω·cm |
| Copper Stability | No corrosion | ASTM D2671 (158°C/168 hours) |
No corrosion |
| Flammability | VW-1 | UL224 | Pass |
| Product Code | Before Shrinking(mm) | After Shrinking (mm) | Standard Length (m) | ||
|---|---|---|---|---|---|
| Inside Diameter(Min.) | Wall Thickness | Inside Diameter (Max.) | Wall Thickness | ||
| Thick-Wall Type | |||||
| PFA0070 | 7±1.5 | 0.15 | 5.7 | 0.17 | 1 |
| PFA0090 | 9±1.5 | 0.15 | 7.5 | 0.17 | 1 |
| PFA0115 | 11.5±1.5 | 0.27 | 9.3 | 0.32 | 1 |
| PFA0145 | 14.5±1.5 | 0.27 | 11.7 | 0.32 | 1 |
| PFA0165 | 16.5±1.5 | 0.27 | 13.2 | 0.32 | 1 |
| PFA0190 | 19±2 | 0.27 | 15.3 | 0.32 | 1 |
| PFA0240 | 24±2 | 0.35 | 19.3 | 0.40 | 1 |
| PFA0280 | 28±2 | 0.35 | 22.5 | 0.40 | 1 |
| PFA0350 | 35±2 | 0.35 | 28.1 | 0.40 | 1 |
| PFA0440 | 44±2.5 | 0.35 | 36.1 | 0.40 | 1 |
| PFA0540 | 54±2.5 | 0.35 | 43.3 | 0.40 | 1 |
| PFA0660 | 66±3 | 0.35 | 52.9 | 0.40 | 1 |
| PFA0780 | 78±3 | 0.37 | 62.5 | 0.40 | 1 |
| PFA0900 | 90±4 | 0.37 | 72.1 | 0.40 | 1 |
| PFA1030 | 103±4 | 0.37 | 82.5 | 0.40 | 1 |
| Thin-Wall Type | |||||
| PFATW0115 | 11.5±1.5 | 0.17 | 9.3 | 0.20 | 1 |
| PFATW0145 | 14±1.5 | 0.17 | 11.7 | 0.20 | 1 |
| PFATW0165 | 16.5±1.5 | 0.17 | 13.2 | 0.20 | 1 |
| PFATW0190 | 19±2 | 0.17 | 15.3 | 0.20 | 1 |
| PFATW0240 | 24±2 | 0.17 | 19.3 | 0.20 | 1 |
| PFATW0280 | 28±2 | 0.17 | 22.5 | 0.20 | 1 |
| PFATW0350 | 35±2 | 0.17 | 28.1 | 0.20 | 1 |
| PFATW0440 | 44±2.5 | 0.17 | 36.1 | 0.20 | 1 |
| PFATW0540 | 54±2.5 | 0.17 | 43.3 | 0.20 | 1 |
| PFATW0660 | 66±3 | 0.27 | 52.9 | 0.30 | 1 |
| PFATW0780 | 78±3 | 0.27 | 62.5 | 0.30 | 1 |
