Excellent moisture resistance and protection performance
Transparent sleeve makes the fusion easier before shrinkage
Can be used conveniently and avoid damage to the optical fiber during installation

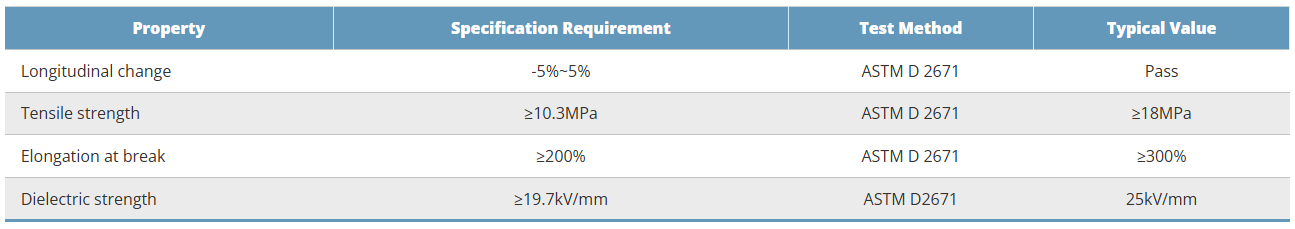

| Property | Specification Requirement | Test Method | Test Value |
|---|---|---|---|
| Longitudinal Change | -5%~5% | ASTM D2671 | Pass |
| Tensile Strength | ≥10.3MPa | ASTM D2671 | ≥18MPa |
| Elongation at Break | ≥200% | ASTM D2671 | ≥300% |
| Dielectric Strength | ≥19.7 kV/mm | ASTM D2671 | ≥25 kV/mm |

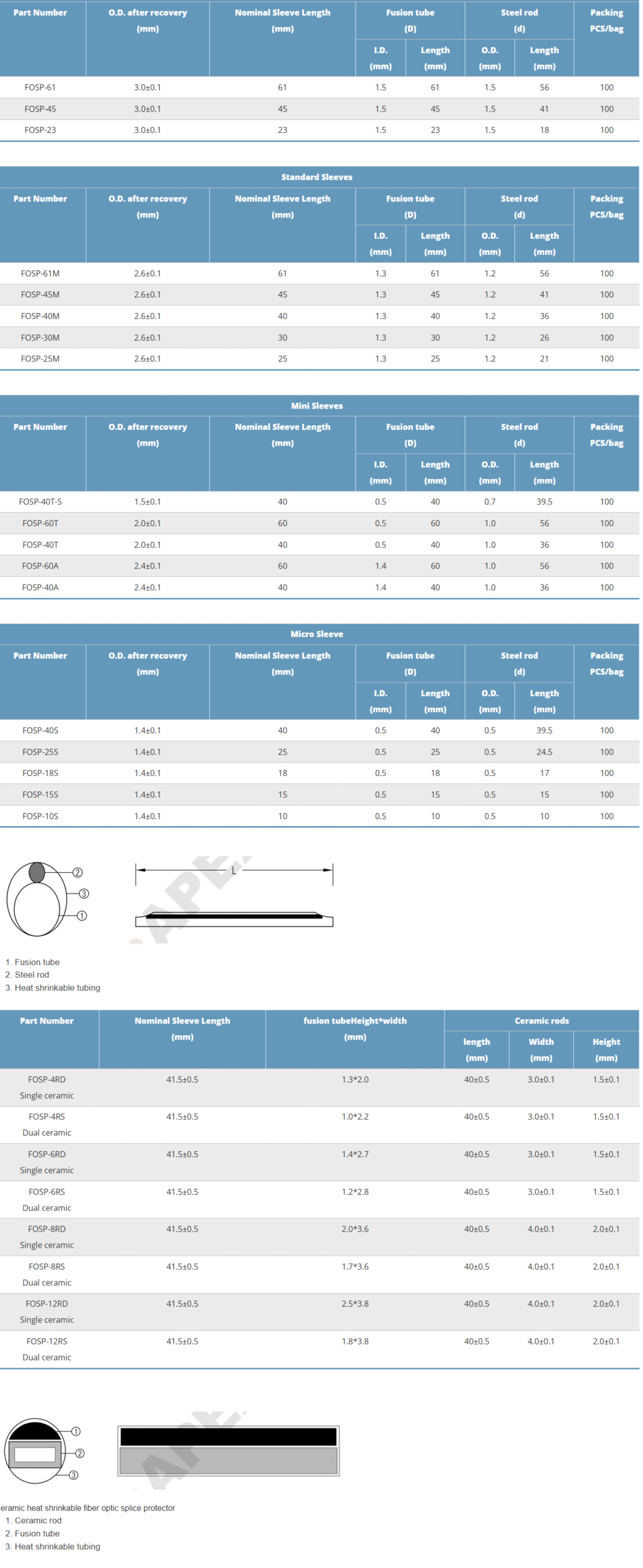

| Large Sleeve | |||||||
|---|---|---|---|---|---|---|---|
| Product Code | Outside Diameter After Shrinking (mm) | Tube Length (mm) | Hot-Melt Tube | Steel Rod | Packaging (pcs/bag) | ||
| Inside Diameter (mm) | Length (mm) | Outside Diameter (mm) | Length (mm) | ||||
| FOSP-61 | 3.0±0.1 | 61 | 1.5 | 61 | 1.5 | 56 | 100 |
| FOSP-45 | 3.0±0.1 | 45 | 1.5 | 45 | 1.5 | 41 | 100 |
| FOSP-23 | 3.0±0.1 | 23 | 1.5 | 23 | 1.5 | 18 | 100 |
| Medium Sleeve | |||||||
|---|---|---|---|---|---|---|---|
| Product Code | Outside Diameter After Shrinking (mm) | Tube Length (mm) | Hot-Melt Tube | Steel Rod | Packaging (pcs/bag) | ||
| Inside Diameter (mm) | Length (mm) | Outside Diameter (mm) | Length (mm) | ||||
| FOSP-61M | 2.6±0.1 | 61 | 1.3 | 61 | 1.2 | 56 | 100 |
| FOSP-45M | 2.6±0.1 | 45 | 1.3 | 45 | 1.2 | 41 | 100 |
| FOSP-40M | 2.6±0.1 | 40 | 1.3 | 40 | 1.2 | 36 | 100 |
| FOSP-30M | 2.6±0.1 | 30 | 1.3 | 30 | 1.2 | 26 | 100 |
| FOSP-25M | 2.6±0.1 | 25 | 1.3 | 25 | 1.2 | 21 | 100 |
| Small Sleeve | |||||||
|---|---|---|---|---|---|---|---|
| Product Code | Outside Diameter After Shrinking (mm) | Tube Length (mm) | Hot-Melt Tube | Steel Rod | Packaging (pcs/bag) | ||
| Inside Diameter (mm) | Length (mm) | Outside Diameter (mm) | Length (mm) | ||||
| FOSP-40T-S | 1.5±0.1 | 40 | 0.5 | 40 | 0.7 | 39.5 | 100 |
| FOSP-60T | 2.0±0.1 | 60 | 0.5 | 60 | 1.0 | 56 | 100 |
| FOSP-40T | 2.0±0.1 | 40 | 0.5 | 40 | 1.0 | 36 | 100 |
| FOSP-60A | 2.4±0.1 | 60 | 1.4 | 60 | 1.0 | 56 | 100 |
| FOSP-40A | 2.4±0.1 | 40 | 1.4 | 40 | 1.0 | 36 | 100 |
| Extra-Small Sleeve | |||||||
|---|---|---|---|---|---|---|---|
| Product Code | Outside Diameter After Shrinking (mm) | Tube Length (mm) | Hot-Melt Tube | Steel Rod | Packaging (pcs/bag) | ||
| Inside Diameter (mm) | Length (mm) | Outside Diameter (mm) | Length (mm) | ||||
| FOSP-40S | 1.4±0.1 | 40 | 0.5 | 40 | 0.5 | 39.5 | 100 |
| FOSP-25S | 1.4±0.1 | 25 | 0.5 | 25 | 0.5 | 24.5 | 100 |
| FOSP-18S | 1.4±0.1 | 18 | 0.5 | 18 | 0.5 | 17 | 100 |
| FOSP-15S | 1.4±0.1 | 15 | 0.5 | 15 | 0.5 | 15 | 100 |
| FOSP-10S | 1.4±0.1 | 10 | 0.5 | 10 | 0.5 | 10 | 100 |
| Product Code | Tube Length (mm) | Hot-Melt Tube Width × Height (mm) | Steel Rod | ||
|---|---|---|---|---|---|
| Length (mm) | Width (mm) | Height (mm) | |||
| FOSP-4RD Single ceramic |
41.5±0.5 | 1.3*2.0 | 40±0.5 | 3.0±0.1 | 1.5±0.1 |
| FOSP-4RS Single ceramic |
41.5±0.5 | 1.0*2.2 | 40±0.5 | 3.0±0.1 | 1.5±0.1 |
| FOSP-6RD Single ceramic |
41.5±0.5 | 1.4*2.7 | 40±0.5 | 3.0±0.1 | 1.5±0.1 |
| FOSP-6RS Single ceramic |
41.5±0.5 | 1.2*2.8 | 40±0.5 | 3.0±0.1 | 1.5±0.1 |
| FOSP-8RD Single ceramic |
41.5±0.5 | 2.0*3.6 | 40±0.5 | 4.0±0.1 | 2.0±0.1 |
| FOSP-8RS Single ceramic |
41.5±0.5 | 1.7*3.6 | 40±0.5 | 4.0±0.1 | 2.0±0.1 |
| FOSP-12RD Single ceramic |
41.5±0.5 | 2.5*3.8 | 40±0.5 | 4.0±0.1 | 2.0±0.1 |
| FOSP-12RS Single ceramic |
41.5±0.5 | 1.8*3.8 | 40±0.5 | 4.0±0.1 | 2.0±0.1 |
